SPECIFICATIONS

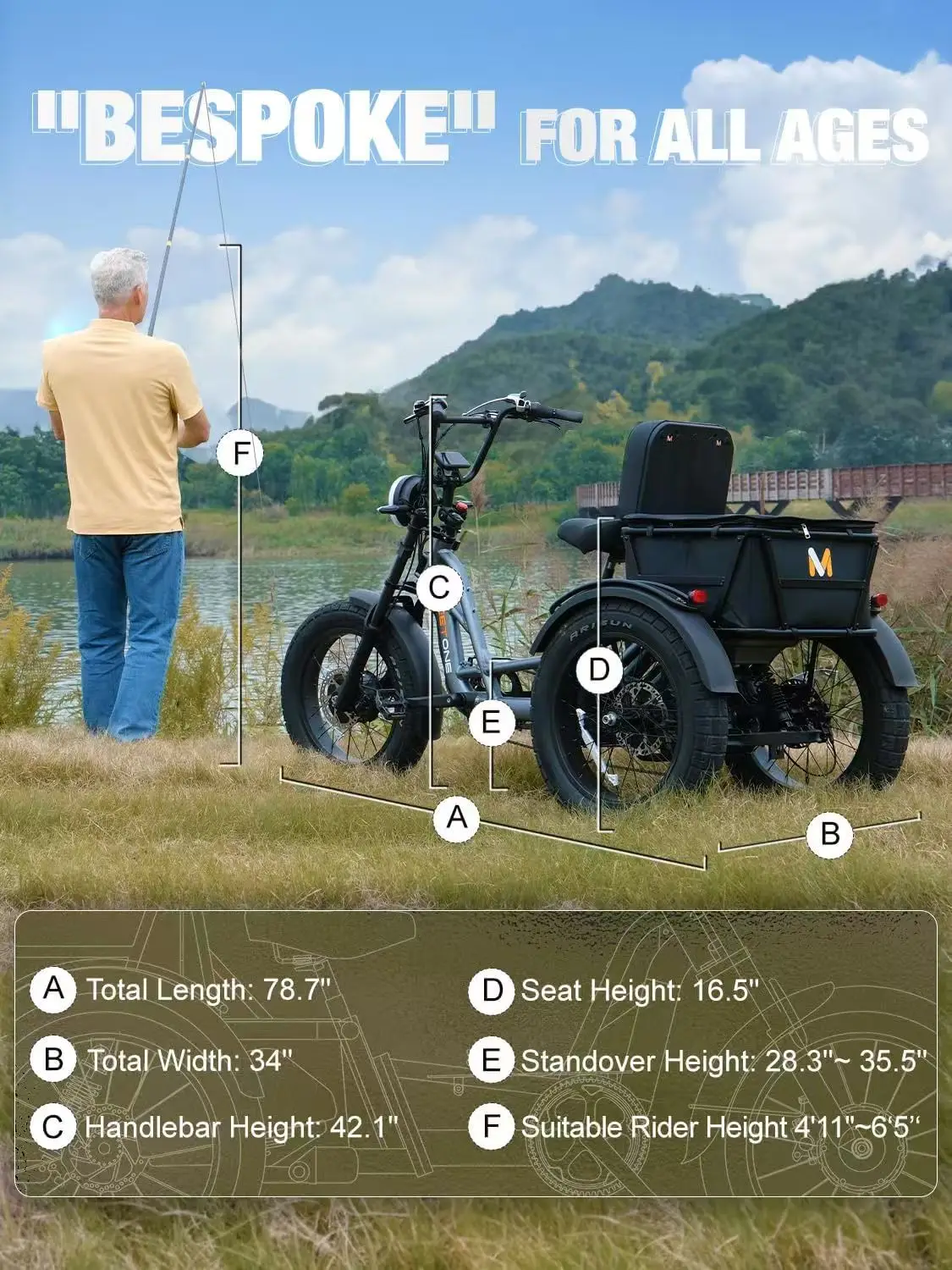

Body length: 2.0 meters

Body material: aluminum alloy

Brand Name: NoEnName_Null

Does it contain front fork suspension?: Yes

Front fork material: aluminum alloy

High-concerned chemical: None

Pedal type: Normal pedal

Rim material: steel

Type: Other

Wheel size: 20 inches

gross weight: 96kg

load capacity: 250kg

net weight: 83kg





VR

Overseas Warehouse

US WAREHOUSE

CA WAREHOUSE

CN FACTORY



Product Paramenters

Performance		Performance
Max Speed	15.5 - 25 MPH (25 - 40 km/h)
Climbing Ability	Up to 30%
Torque	180 N.m
Max Load	550 lbs (250 kg)
Waterproof	IPX4

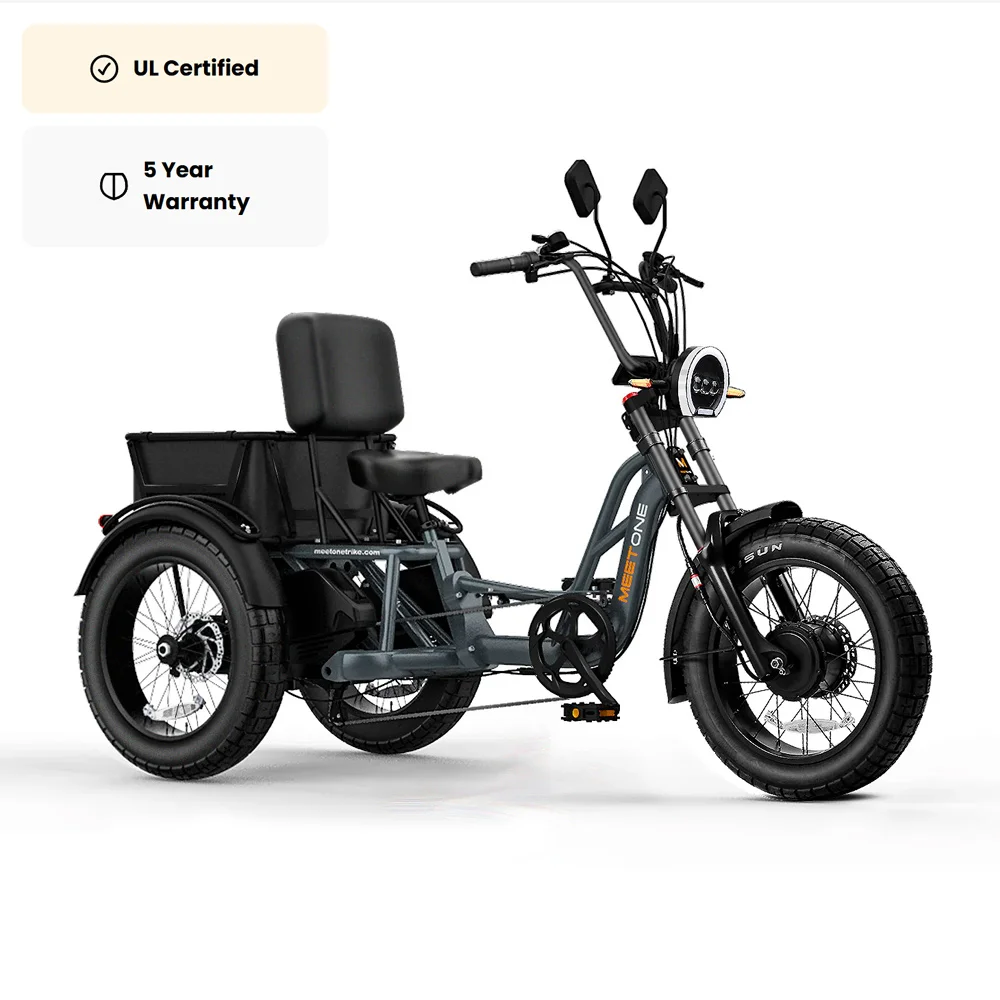

Warranty	5 Year
Certification	CE,UL, UN38.3, MSDS, Design Patent
Electronics
Battery	Samung or LG 21700 Cells
Charger	Input: 110-240V~, 50-60Hz. Output: 54.6V

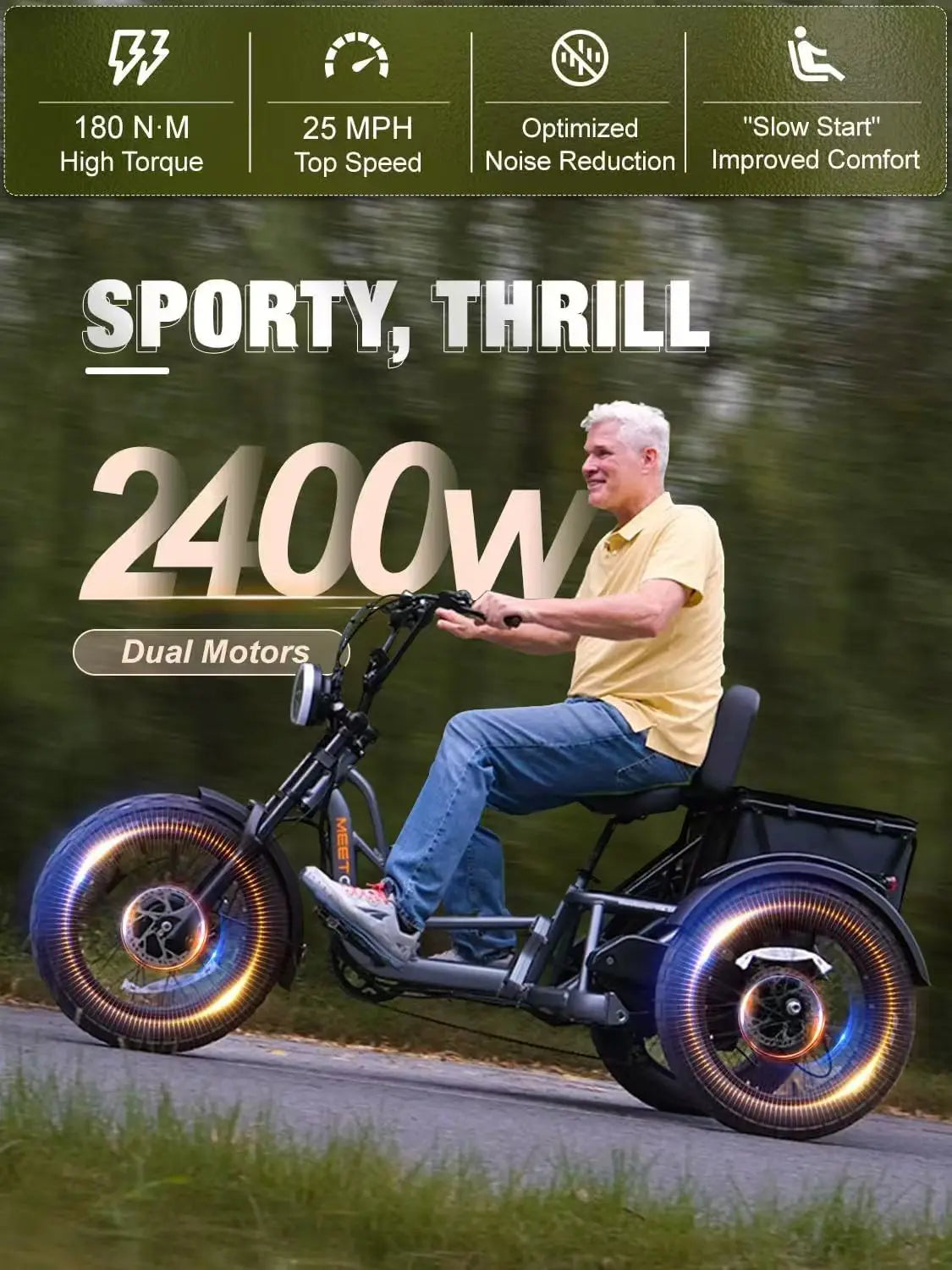

Motor	1500W, Peak 2400W (Dual 750W Brushless Motors)
Controller	50A (Dual LISHUI 25A Controller)

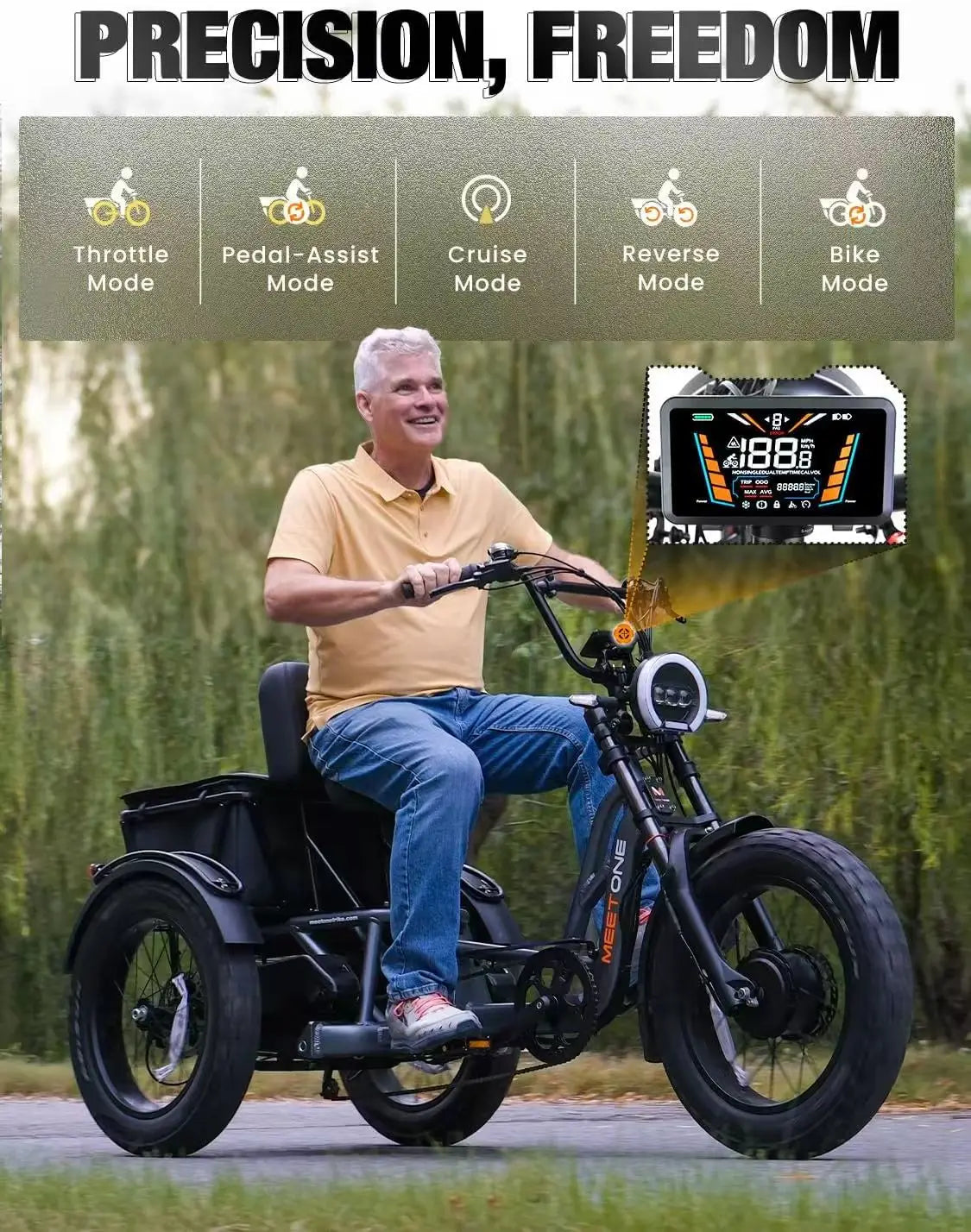

Display	Yolin Integrated Smart Color LCD Display
Light	Headlight & Tailight with Brake Indication

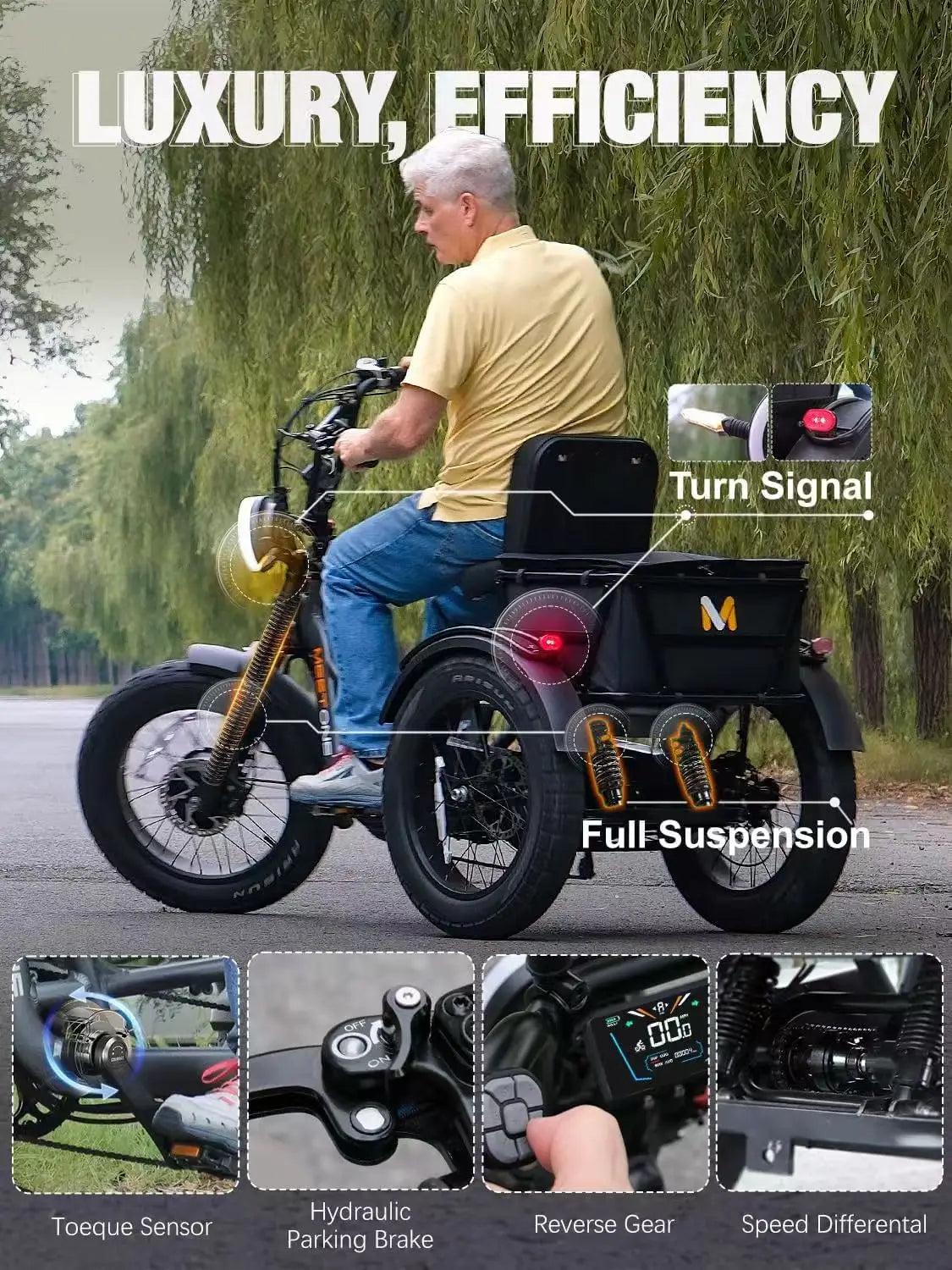

PAS Sensor	Torque Sensor
Component

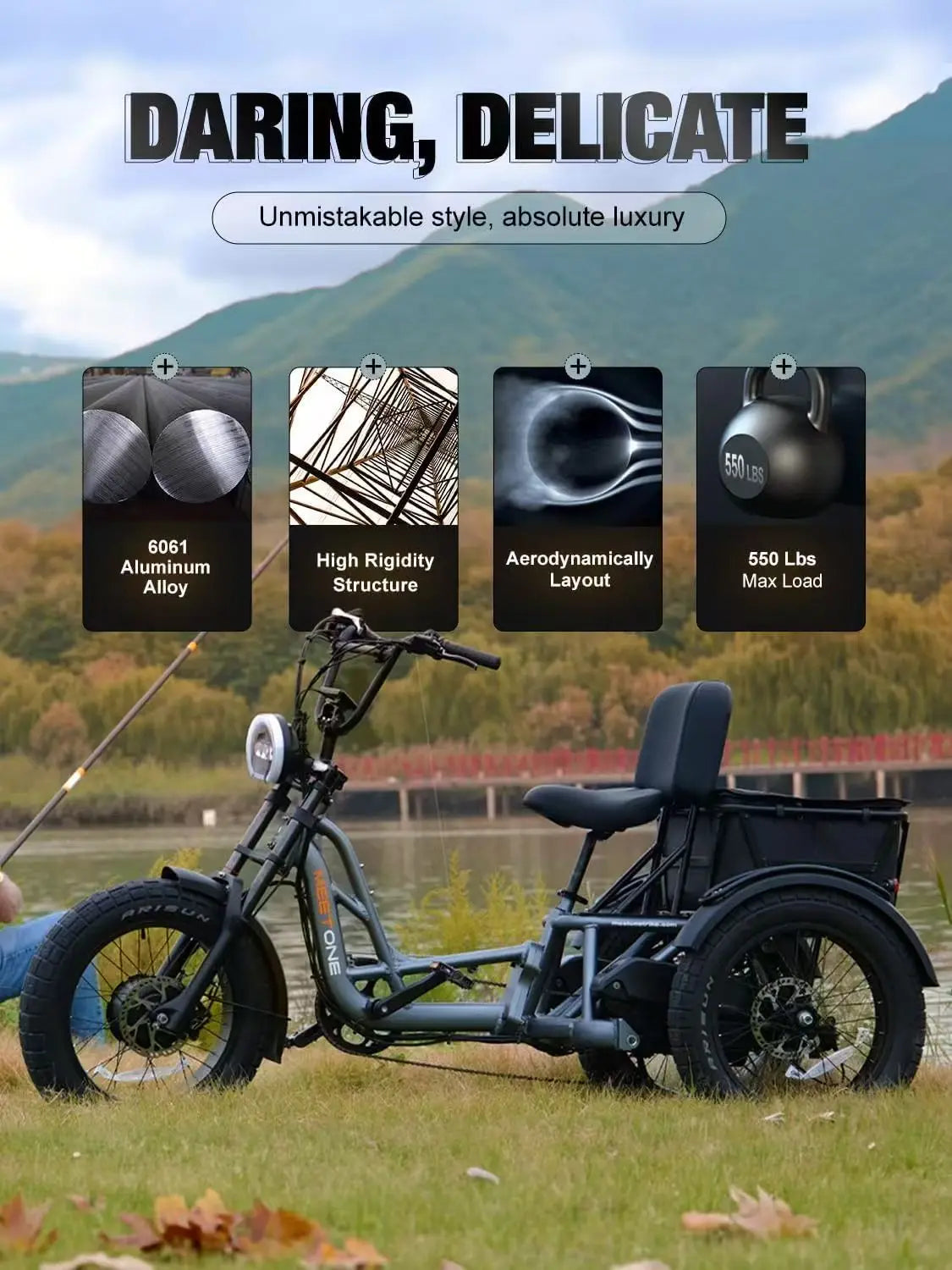

Frame	6061 Aluminium Alloy
Transmission	Shimano 7 Speed
Brake	F/R 180mm Hydraulic Brakes
Front Fork	Dual-shoulder Front Fork & Rear Shocks
Shock Absorber	Dual Rear Shock Absorbers
Tires	20*4.0'' All-terrain Tires
Crankset	52T 170mm Crankset

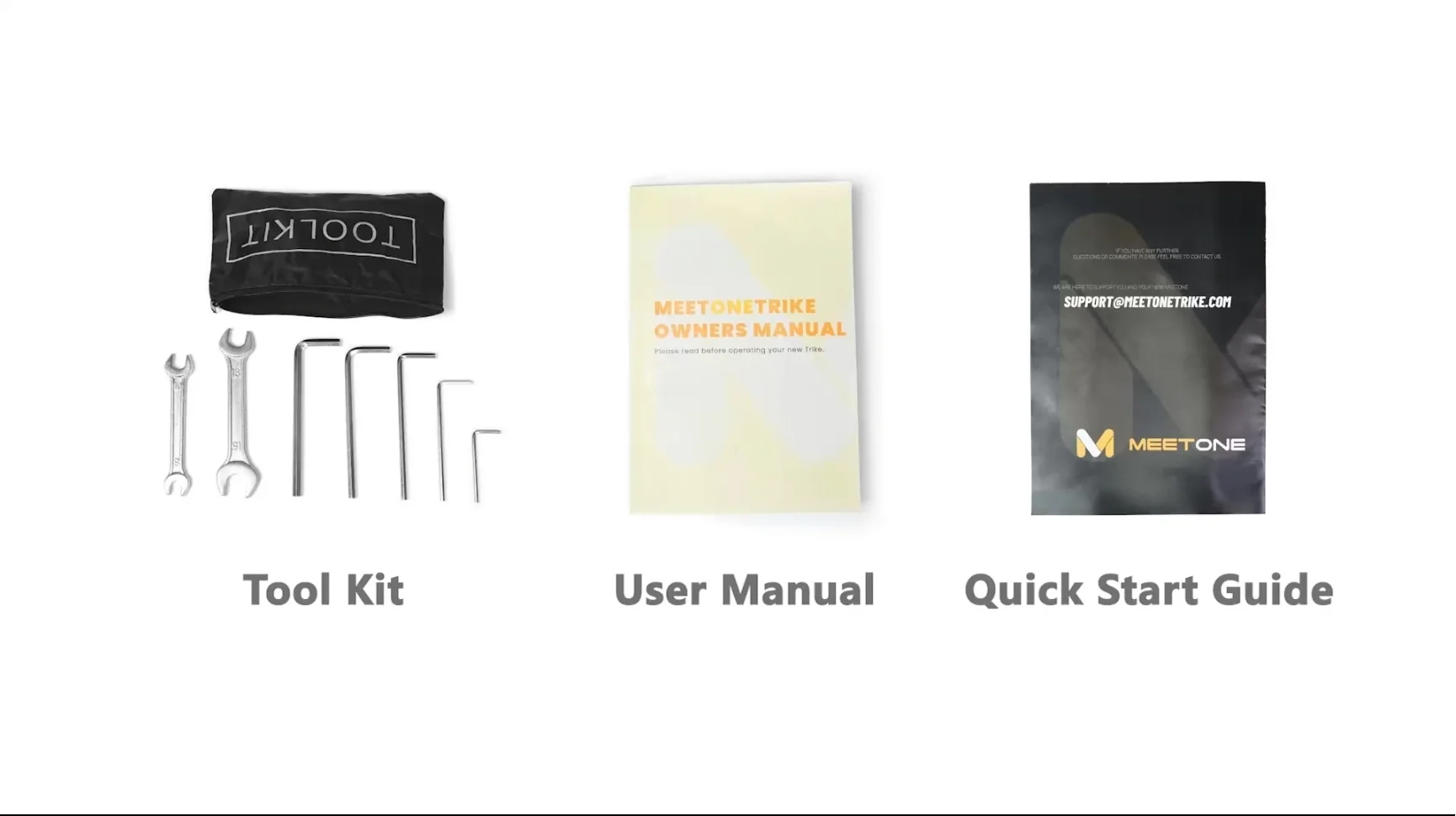

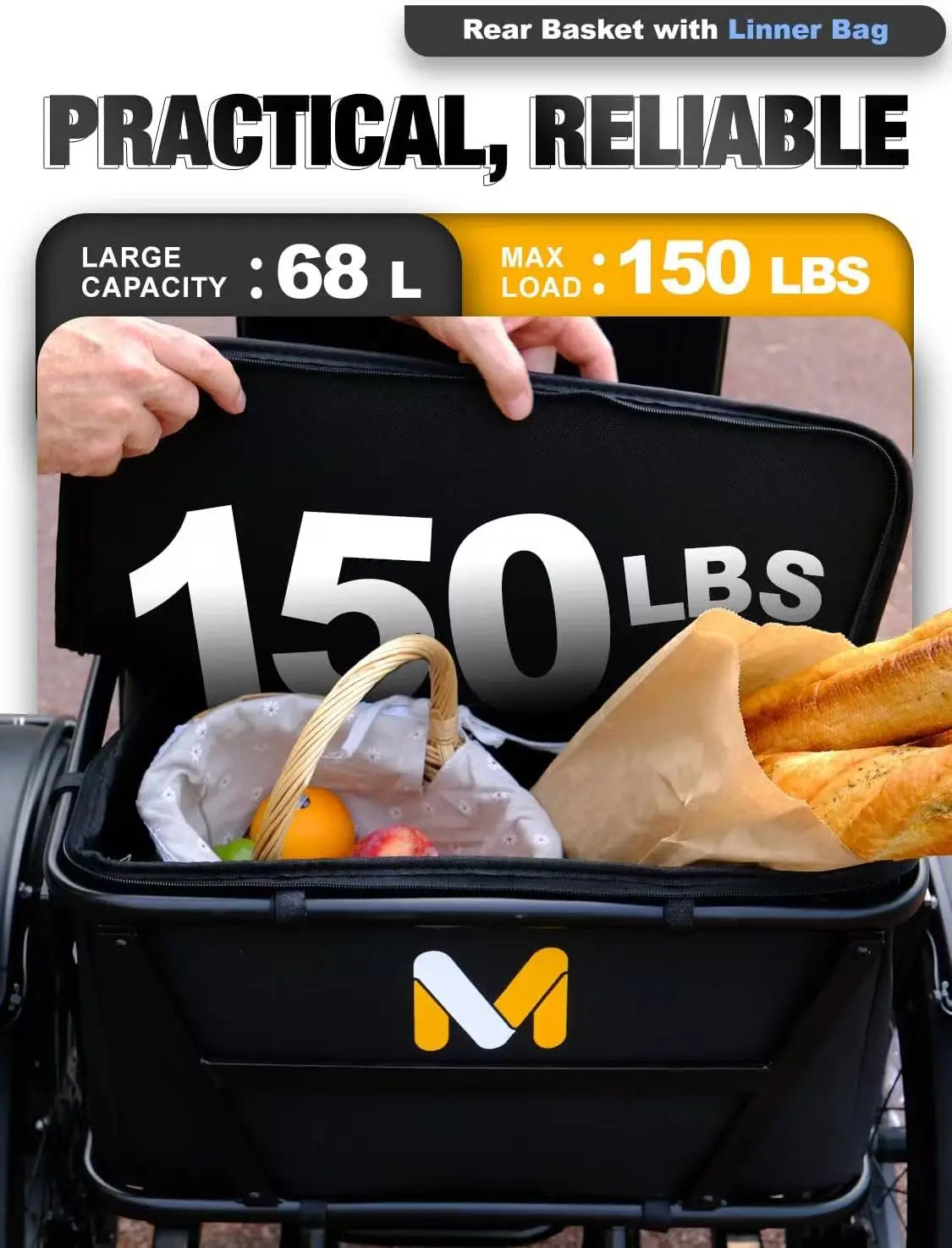

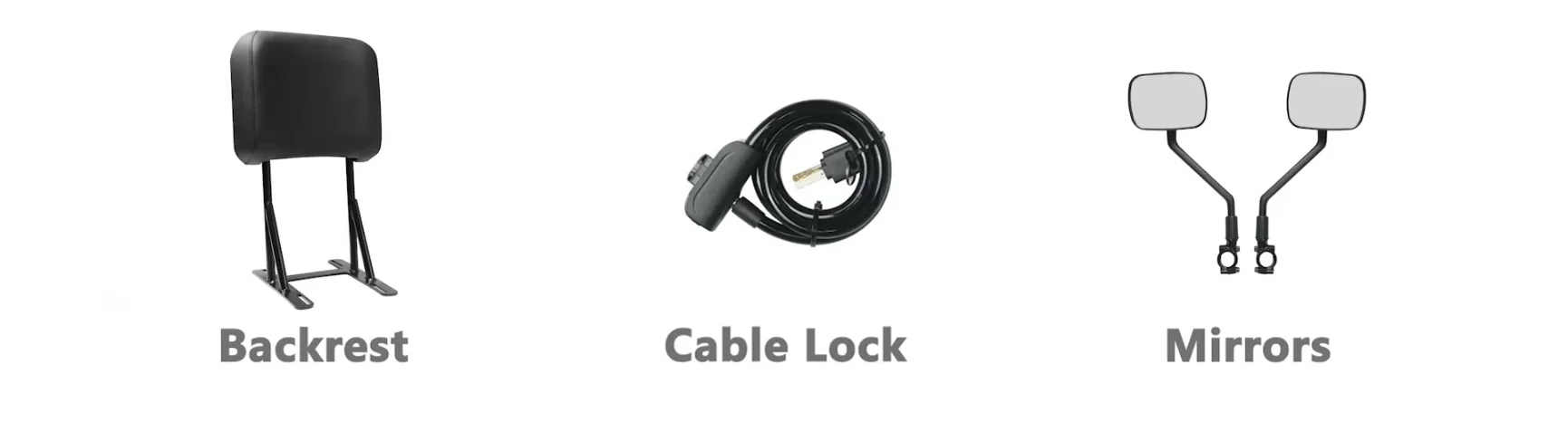

Accessories	Fenders, Rear Basket, Backrest, Rearview Mirror, Cable Lock, Tool Kit, User Manual

Battery Capacity - Mileage Reference

Battery	Throttle Mode Range	PAS Mode Range	Charger
15AH	25-35+ Miles	35-60+ Miles	2.0A Charger
20AH	35-50+ Miles	45-80+ Miles	3.0A Charger
25AH	40-60+ Miles	60-100+ Miles	4.5A Charger
15AH+15AH	45-65+ Miles	70-120+ Miles	Two 2.0A chargers
20AH+20AH	70-100+ Miles	90-160+ Miles	Two 3.0A Chargers

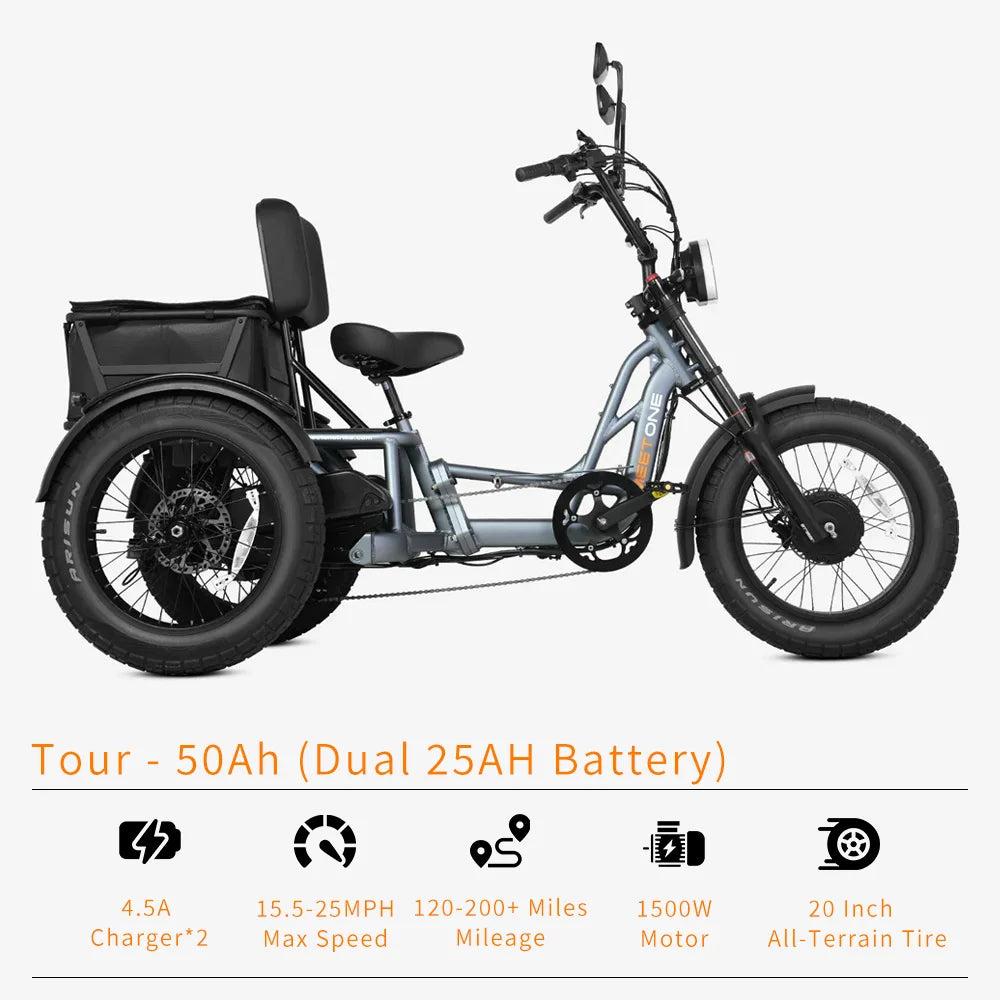

25AH+25AH	80-120+ Miles	120-200+ Miles	Two 4.5A Chargers

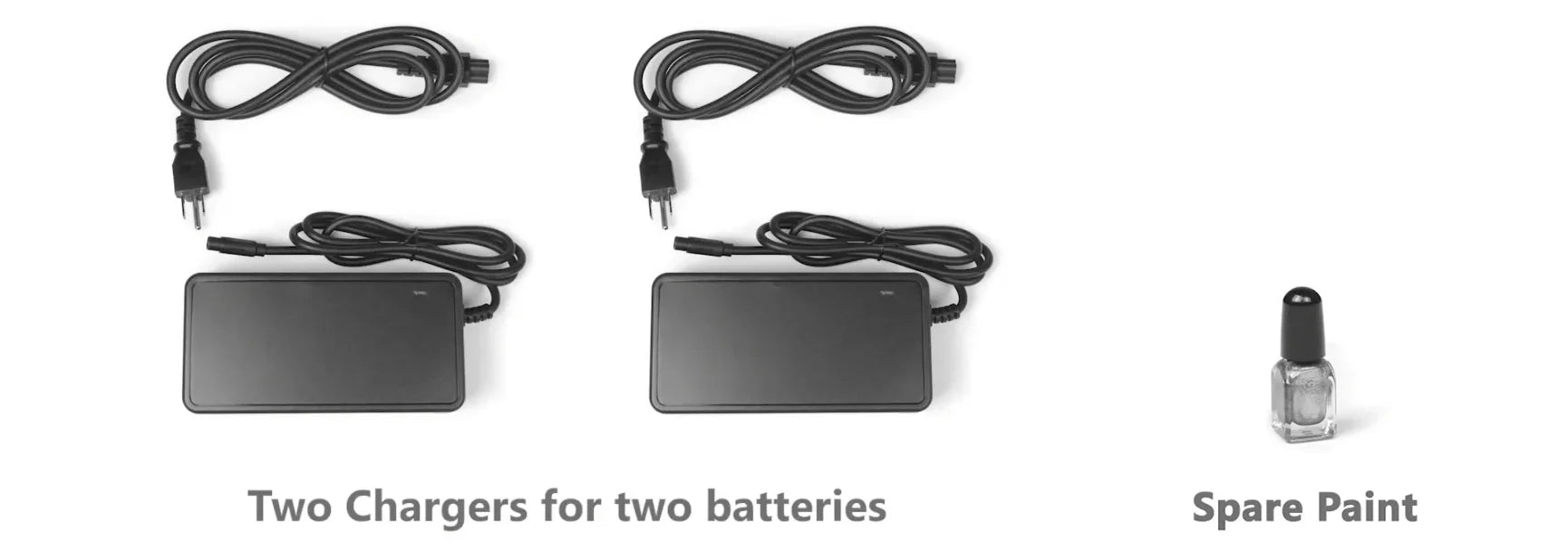

Packing List
