BAFANG BBS02 750W 48V Mid Drive Motor - High Power Electric Bike Conversion Kit with Removable 52V/48V 20Ah/13Ah Lithium Battery

Regular price $963.99 USD

Regular price ~~$0.00 USD~~ Sale price $963.99 USD

Sale Sold out

Shipping calculated at checkout.

Color 44T 750W 48V 13AhVariant sold out or unavailable 44T 750W 48V 20AhVariant sold out or unavailable 44T 750W No BatteryVariant sold out or unavailable 44T 750W 52V 20AhVariant sold out or unavailable

Chainring Teeth 44T or 46TVariant sold out or unavailable

Quantity Quantity

(0 in cart)

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

SPECIFICATIONS

Brand Name: BAFANG

Certification: CE

Design: Brushless

Feature1: Bafang Motor

Feature2: With Lithium Battery

High-concerned chemical: None

Keyword: Mid Drive Motor

Motor: Side Hung Motor

Voltage: 48V

Wattage: > 400w

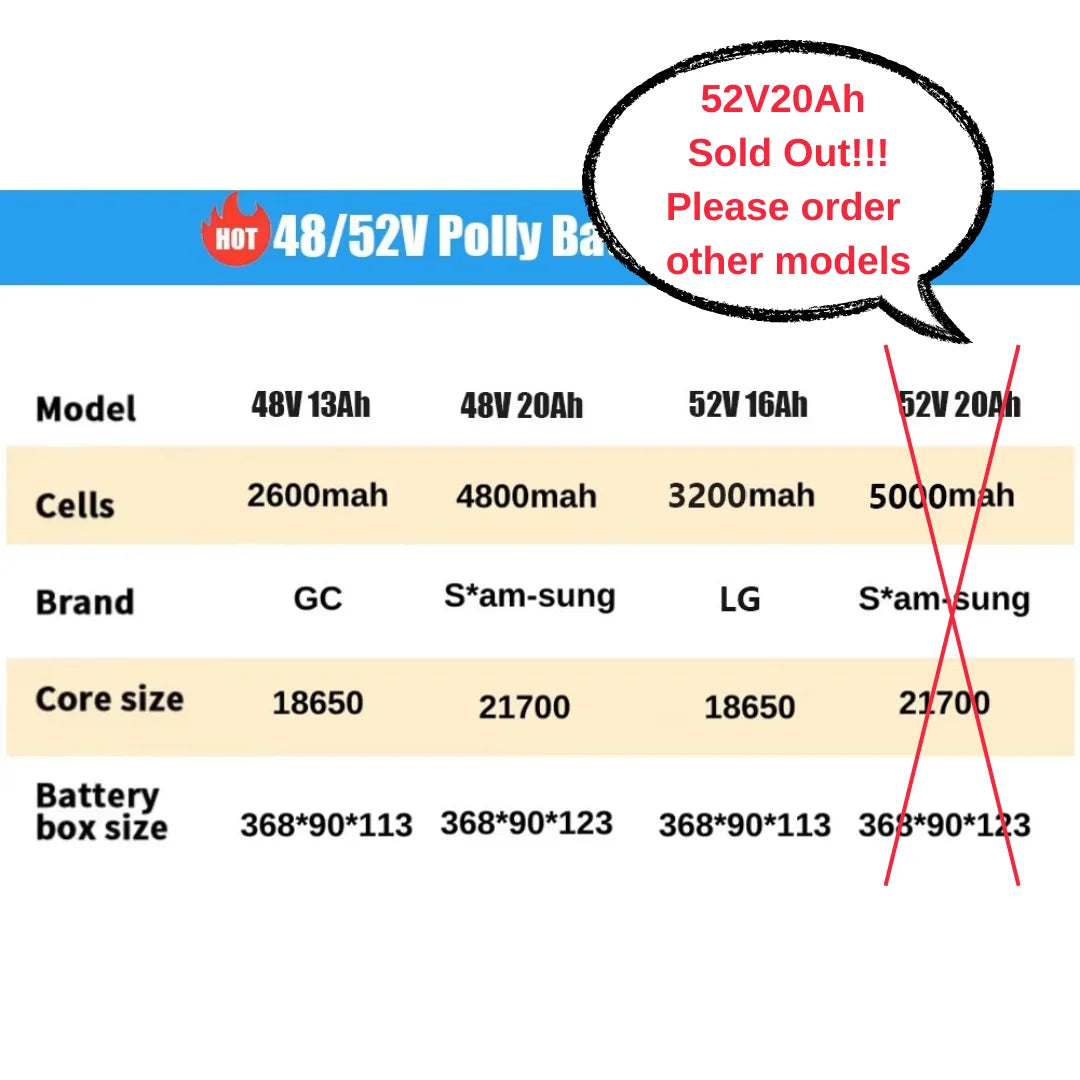

Please do not order the 52V 20Ah kit as we are unable to arrange shipment for it.

We recommend you choose another battery, such as the 48V 20Ah model.

About US
1.Warranty,BAFANG Offcial Authorized Seller:1 Year warranty for Electric Bike Battery and Bafang Mid Drive Motor Kit,free repair or  replacement if there is any quality problem.
2.Powerful & Reliable Motor:The 750W motor max torque up to 120N.M.It's a powerful and reliable Mid Drive Kit on the market.This brushless motor will easily climb stairs,go well over 30mph on the flats and much,much faster down hills.Provide more powerful when you riding on the road or climb the mountains.It's a good gift for Wife/Husband and a special gift for the elder people.
3.Easy Installation:Easily convert your pedal bike into a electric bike,we will offer a installation video.You can choose the E-bike to enjoy a long time travel,and also exercise.
4.Complete Accessories:Come with all necessary accessories:750W Mid-drive motor(48V/52V),brake lever or brake sensors for hydraulic brakes,thumb throttle,chainring wheel ,crank,LCD display,speed sensor and magnets,1T4 wire,nuts.

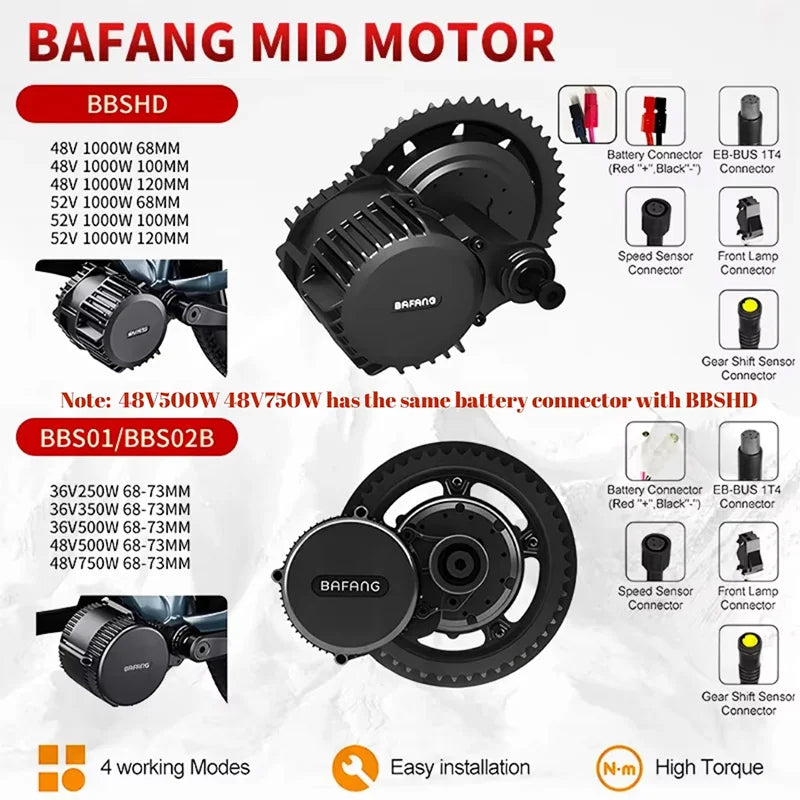

About Motor

❊❊❊❊❊Universal Compatible:Bafang BBS02B Mid drive kit is compatiable with mountain bike,road bike and so on. This kit is designed to fit a standard 68-73mm (length) and 34-36mm (internal diameter) bottom bracket.

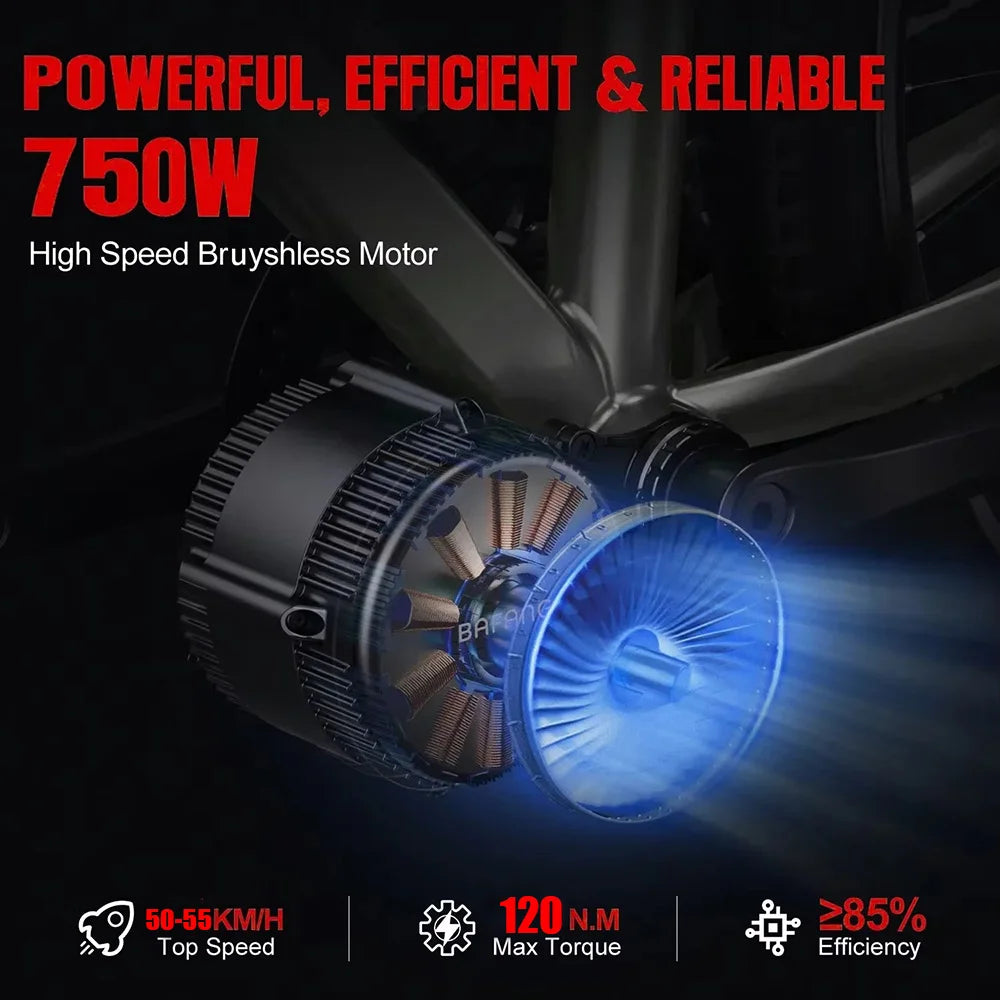

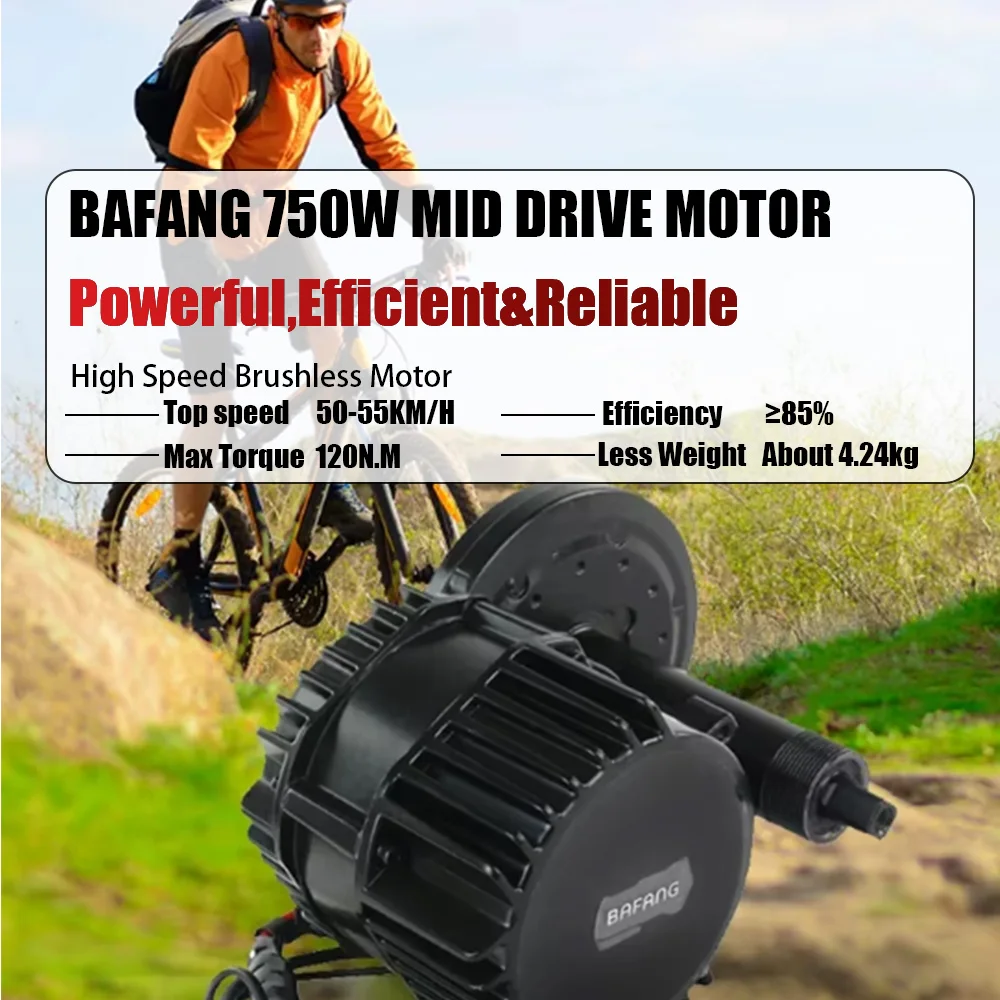

❊❊❊❊❊Powerful and Reliable Motor:The BBS02 750W motor max torque up to 120 N.m. This mid speed sensor motor will easily climb stairs,The max torque of BAFANG BBS02 is 120 Nm . Top Speed can reach 50KM/H. You can cycle on the road or climb the mountains much faster and easier , which really plays a great role in your daily life especially for the old . It's a good gift for Wife/Husband and a special gift for the elder people.

❊❊❊❊❊Easy Installation & Three Riding Mode:Easily convert your pedal bike into a electric bike.Three riding Mode (E-bike & Pedal Assisted bicycle& Pedal Bike) for you to choose, you can choose the E-bike to enjoy a long time travel, and also exercise various modes satisfy your different needs , this eBike motor can make your cycling trip more exciting.
-Specification-
Bafang Model: G340.750
Power:750W
Voltage:48V
Controller Current: 25A
No Load Speed(RPM) :140-160
Load Speed(RPM):120-135
MAX Torque:120N.m
Max speed:50-55km/h
Efficiency: ≥ 85%
PAS SENSOR : Speed Sensor
Reduction Ratio: 1 : 21.9
Certification:CE/EN 14764/ROHS
Waterproof Grade:IP65
Net Motor Weight: 4.24kg
Motor kits Weight:5.6-6.0kg
Bracket bottom length:68mm
Motor Operation Temperature:-20℃-45℃
-Tip-

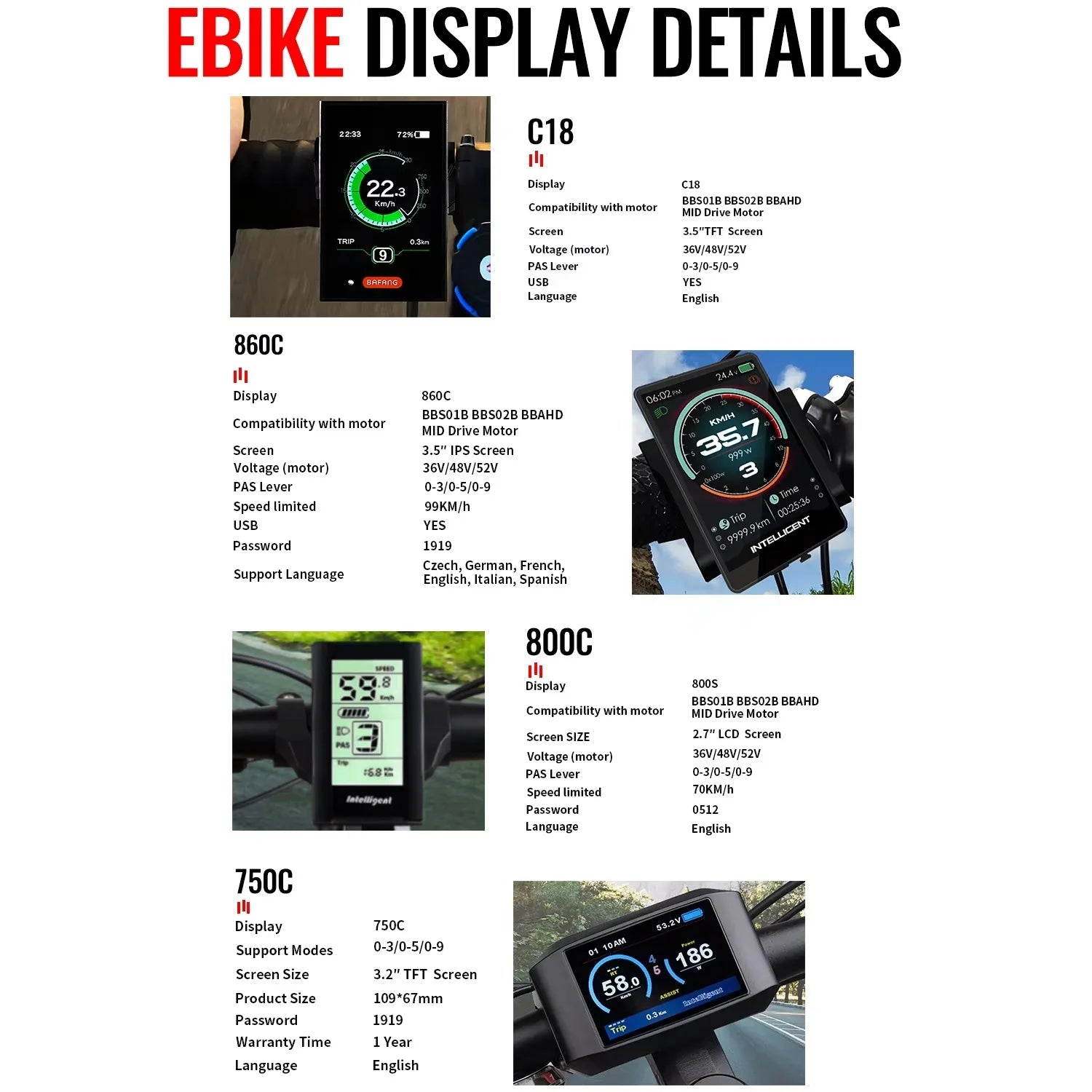

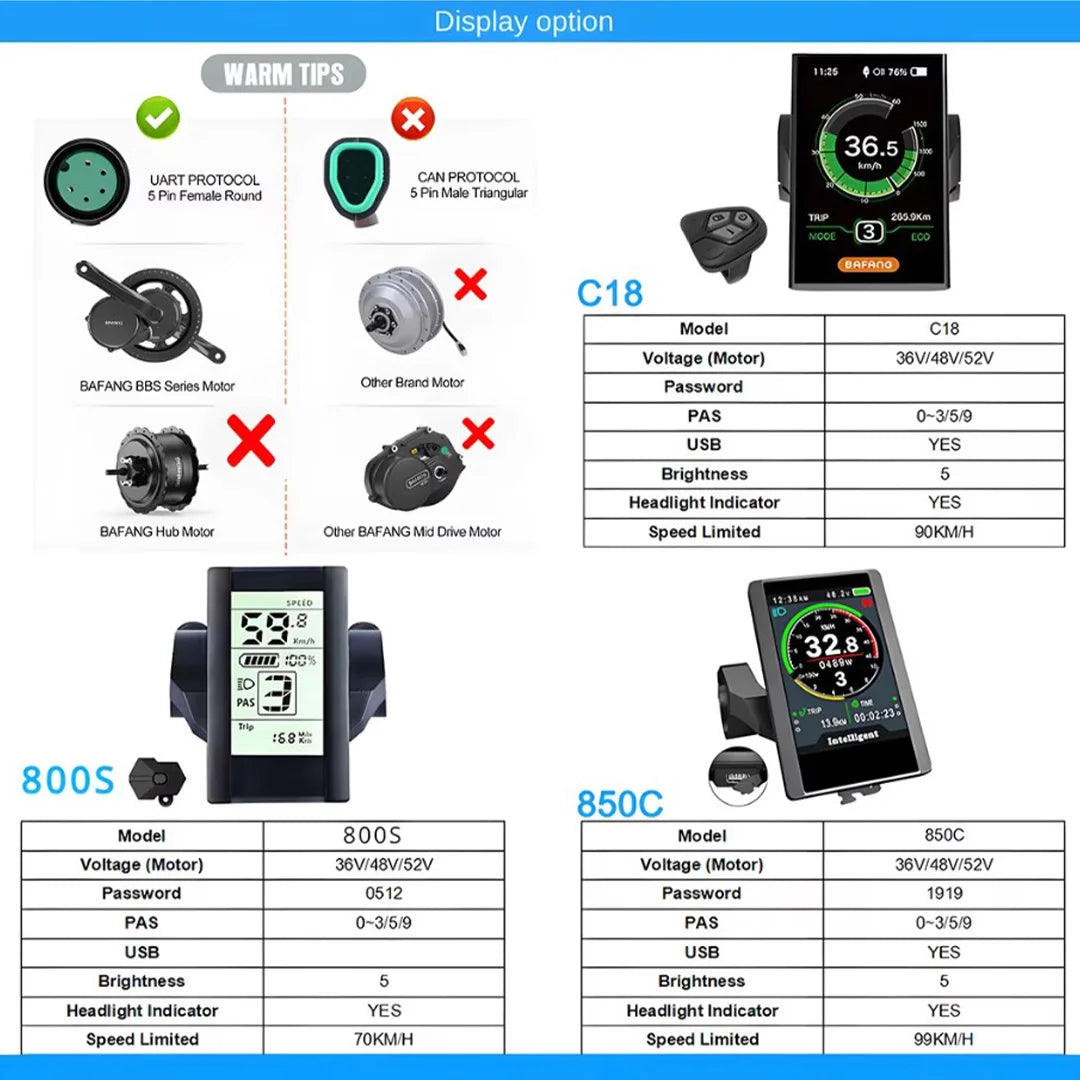

If you want a more intuitive understanding of battery power and you want your bike more cool, it is recommended that you select DP-C18 display.
How far can you ride:The pure throttle mode can ride about 50 KM, and the assist mode can ride about 80 KM.
-Tip-

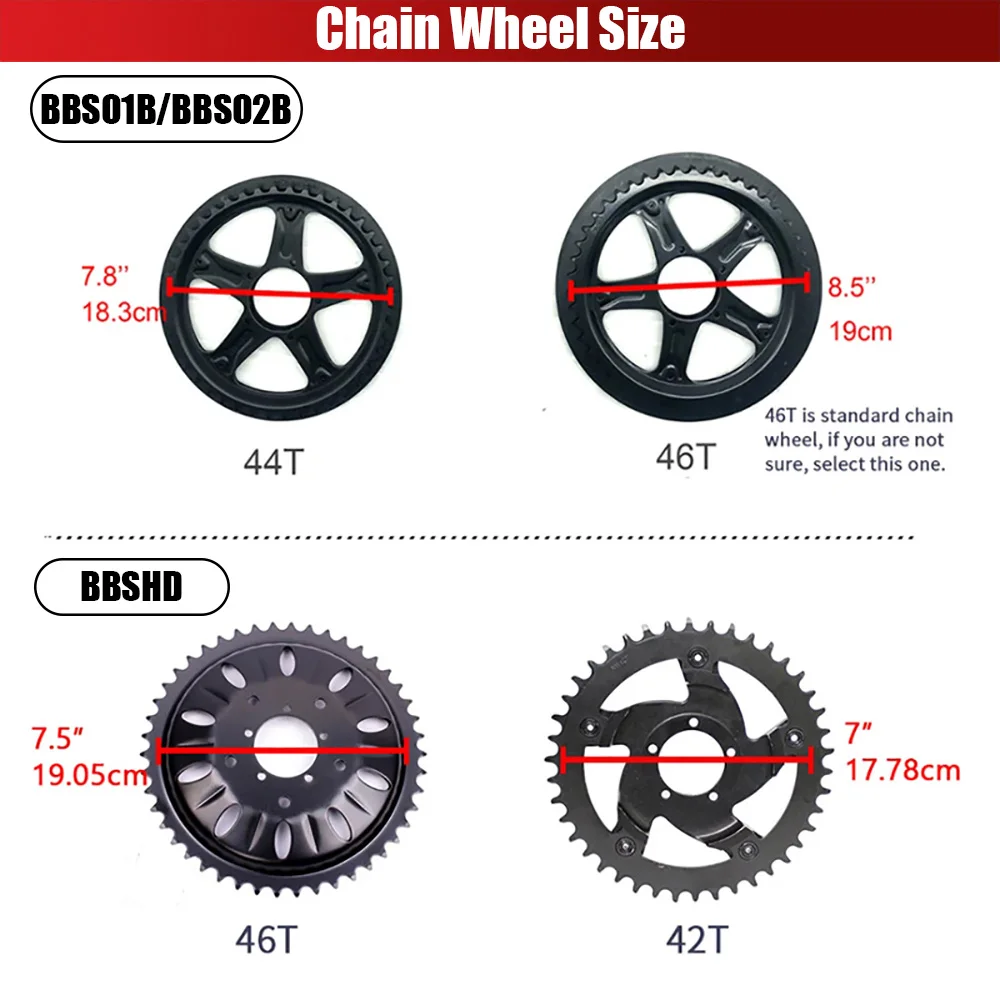

❊❊❊❊❊For a normal pedal bike without electricity, small chainring is more compatible with mountain bike which can help you climb easier. Big chaining is more suitable for city bike, road bike and foldable bike which can help you enjoy faster speed.
However ,now you are converting a bike to an ebike with motor, the size of chainring won't influence much because there is enough power for you to ride.When you install a mid motor on your bike , the bigger the chainring is , the faster the speed wil be. And please note that the chainring is more compatible with a bike ≤9 speed. If you are not sure which chainring you should use, you can consider the same teeth as your original chainring.
-Tip-

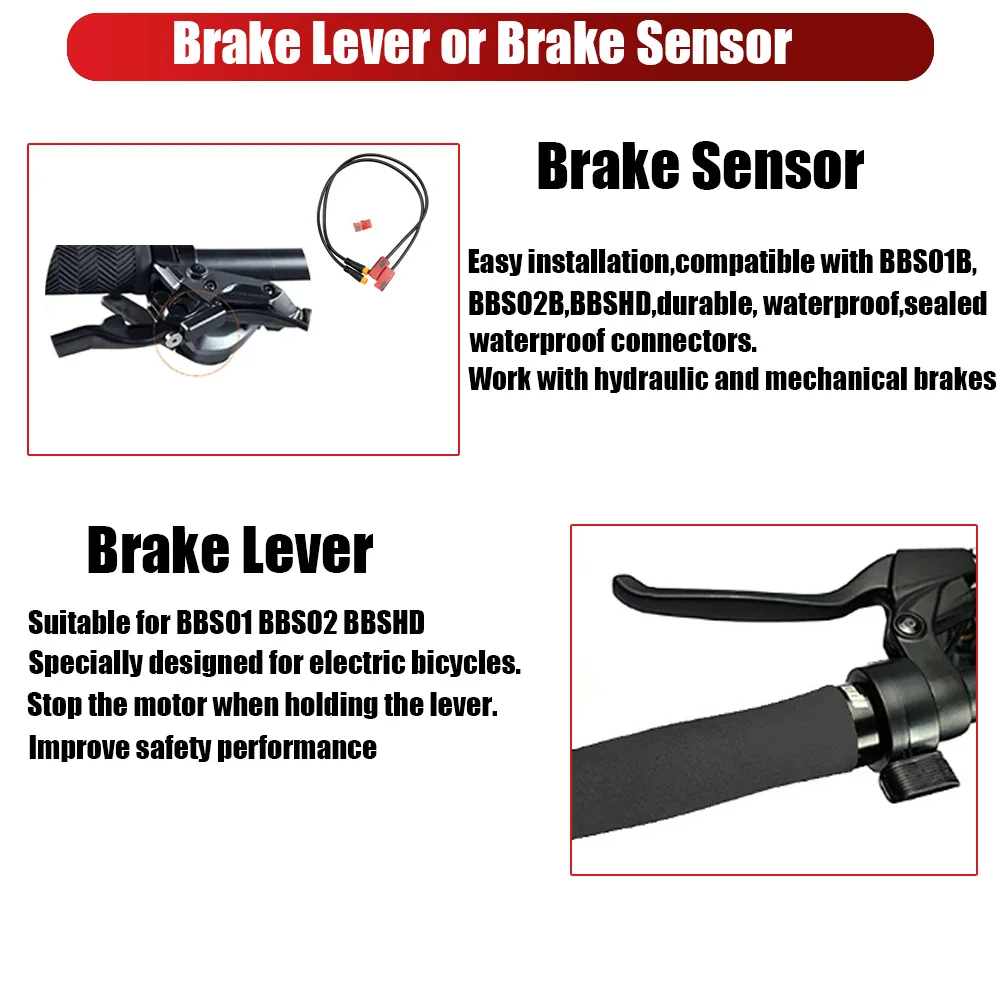

The brake lever we send by default has a power-off function. We provide you with some tips on choosing the appropriate braking system options.
If your bicycle braking system is a mechanical disc brake or a wheel V-shaped brake, you can choose the brake lever option.
If your bicycle braking system is an integrated thumb shifter, it is hydraulic braking, or if you want to keep your own brake lever. You can choose the brake sensor in the BAFANG mid wheel drive kit.

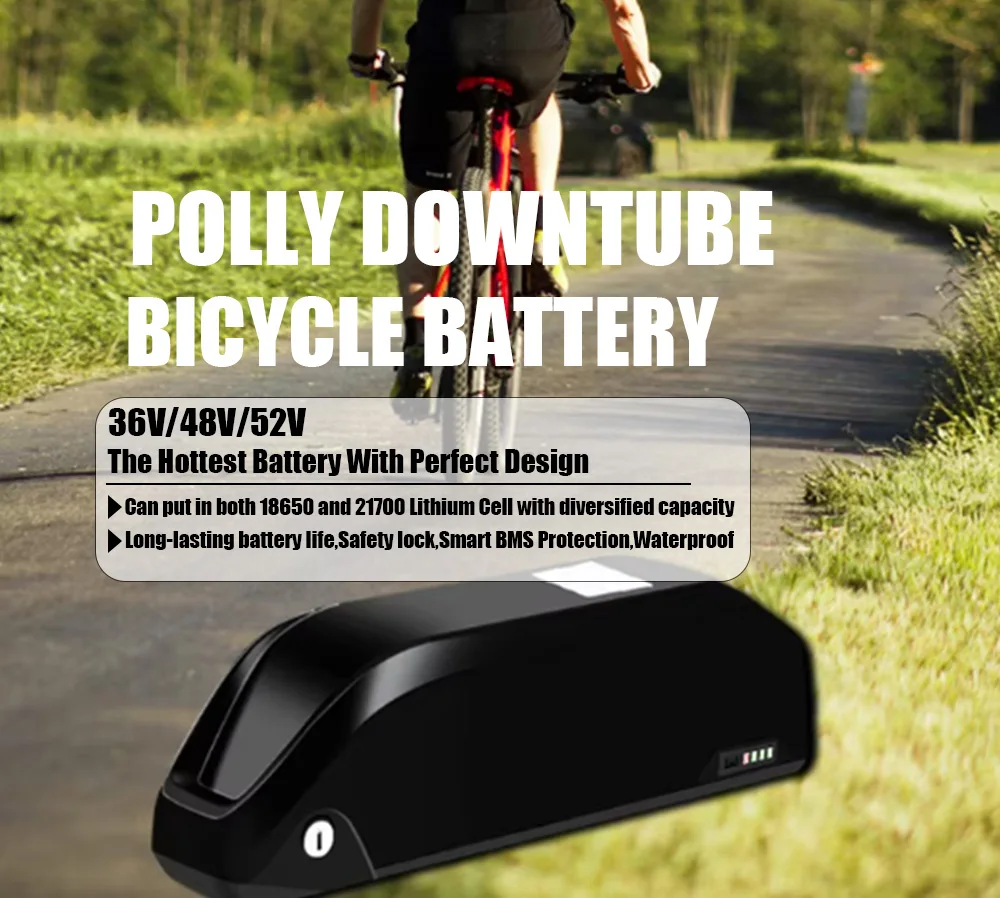

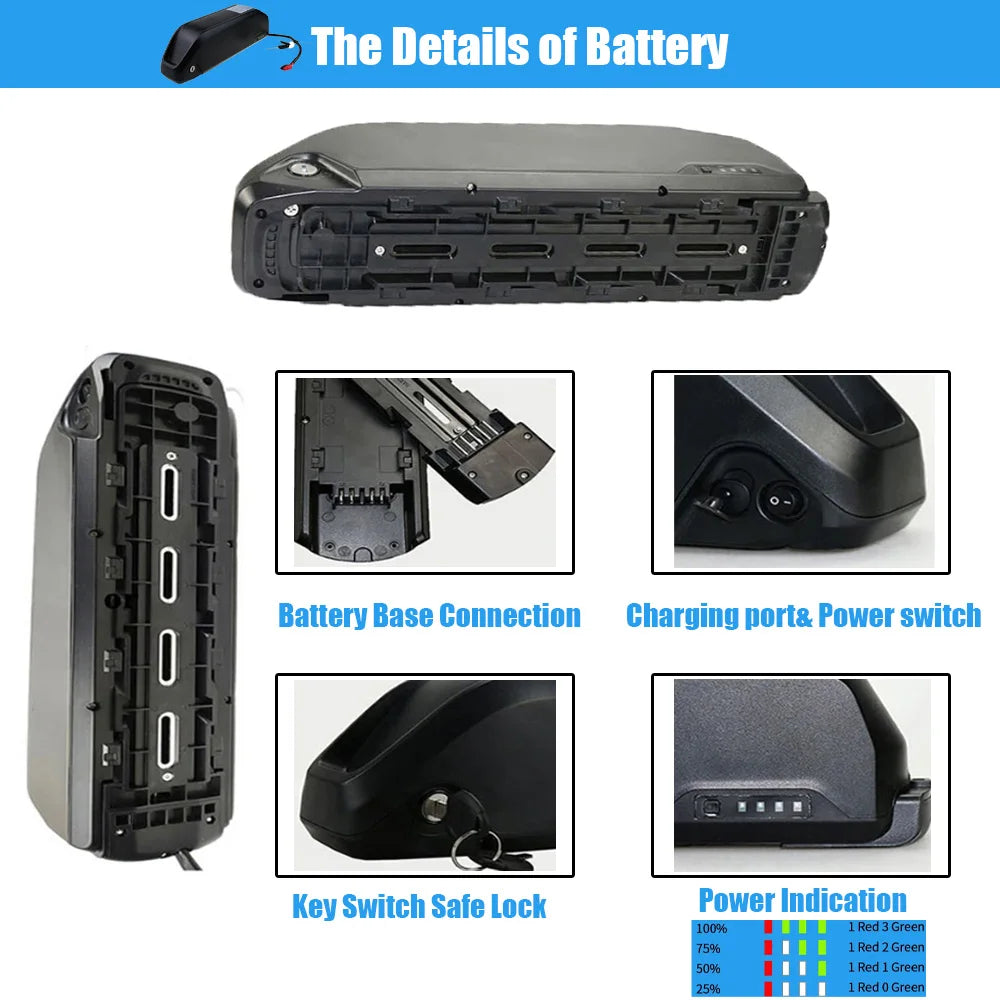

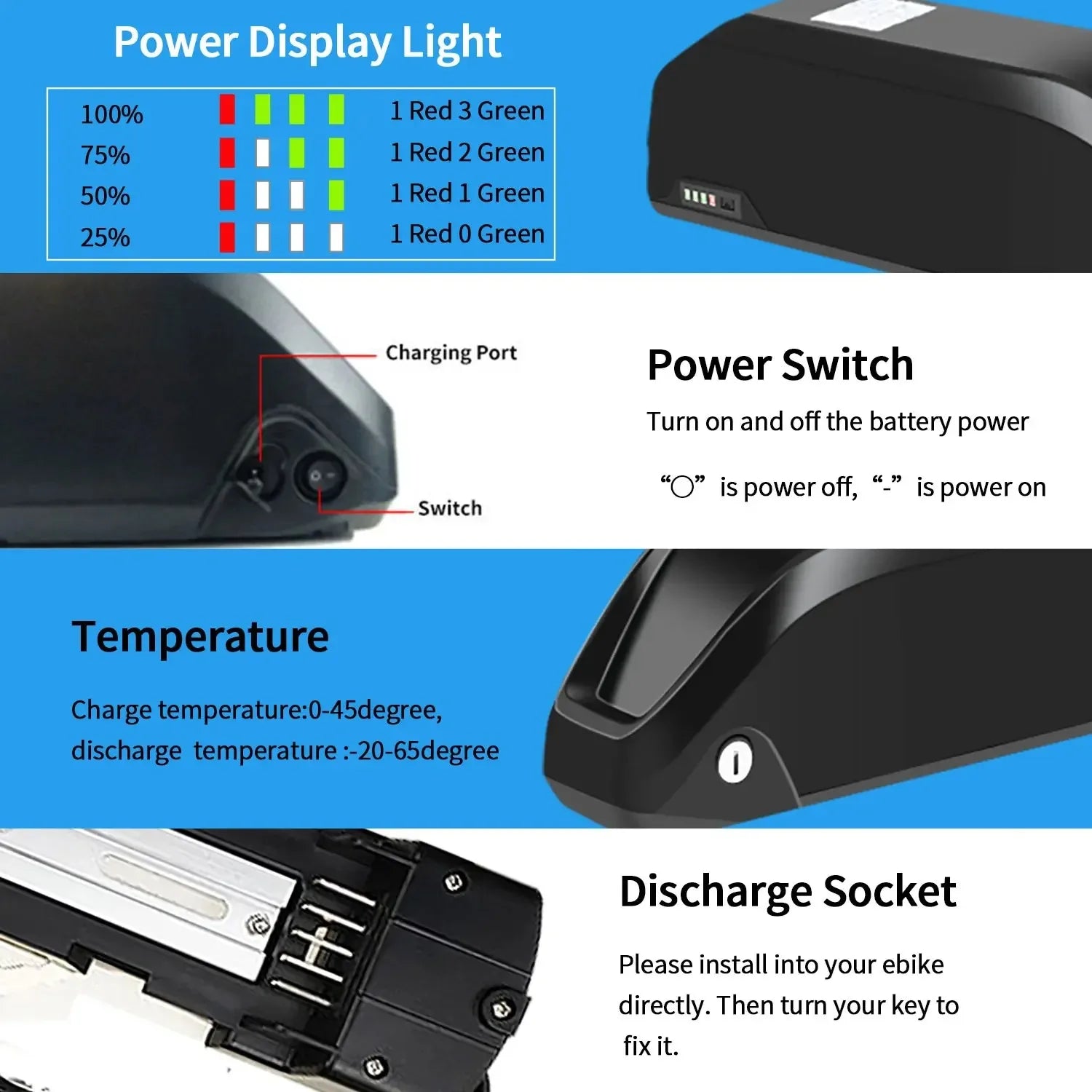

Downtube Battery

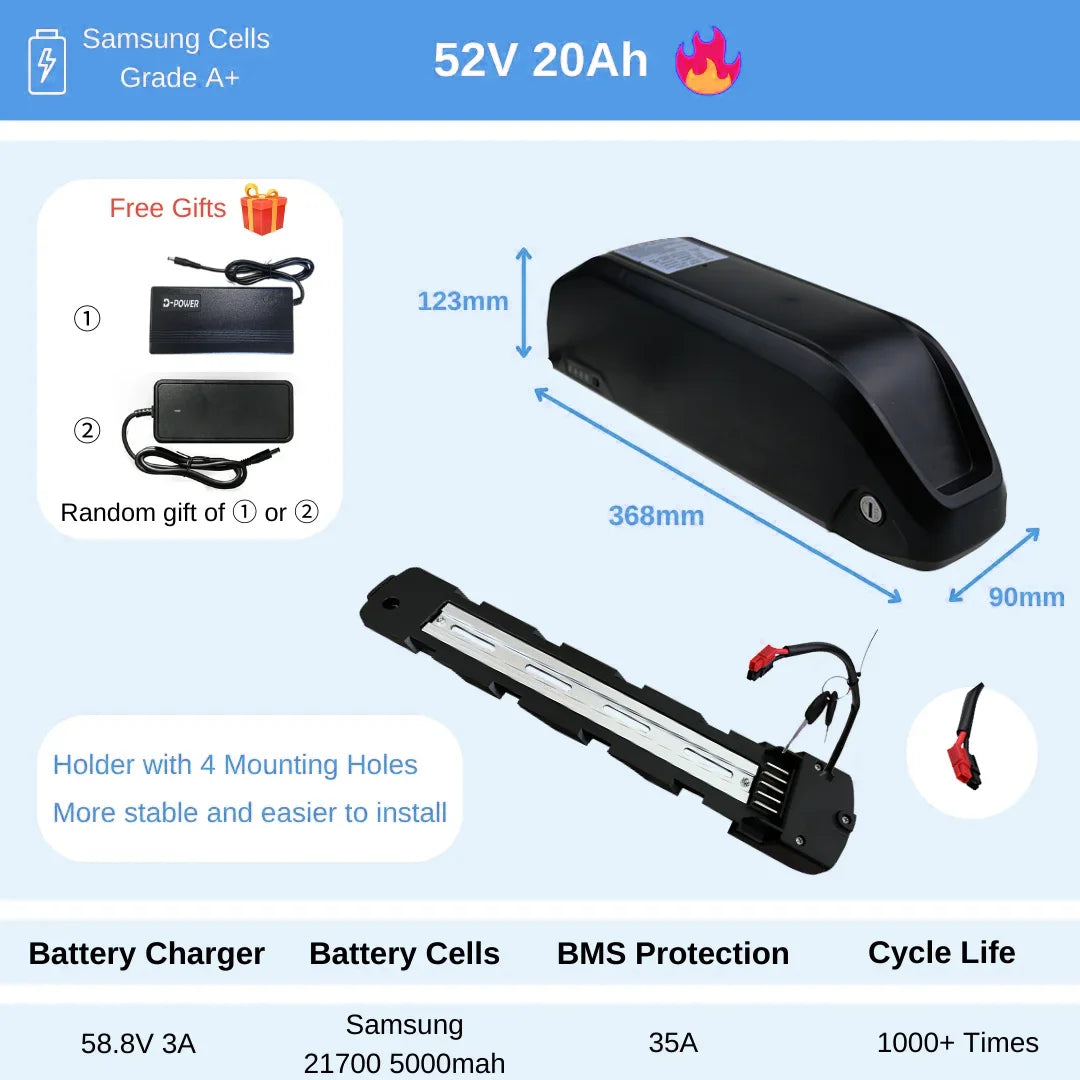

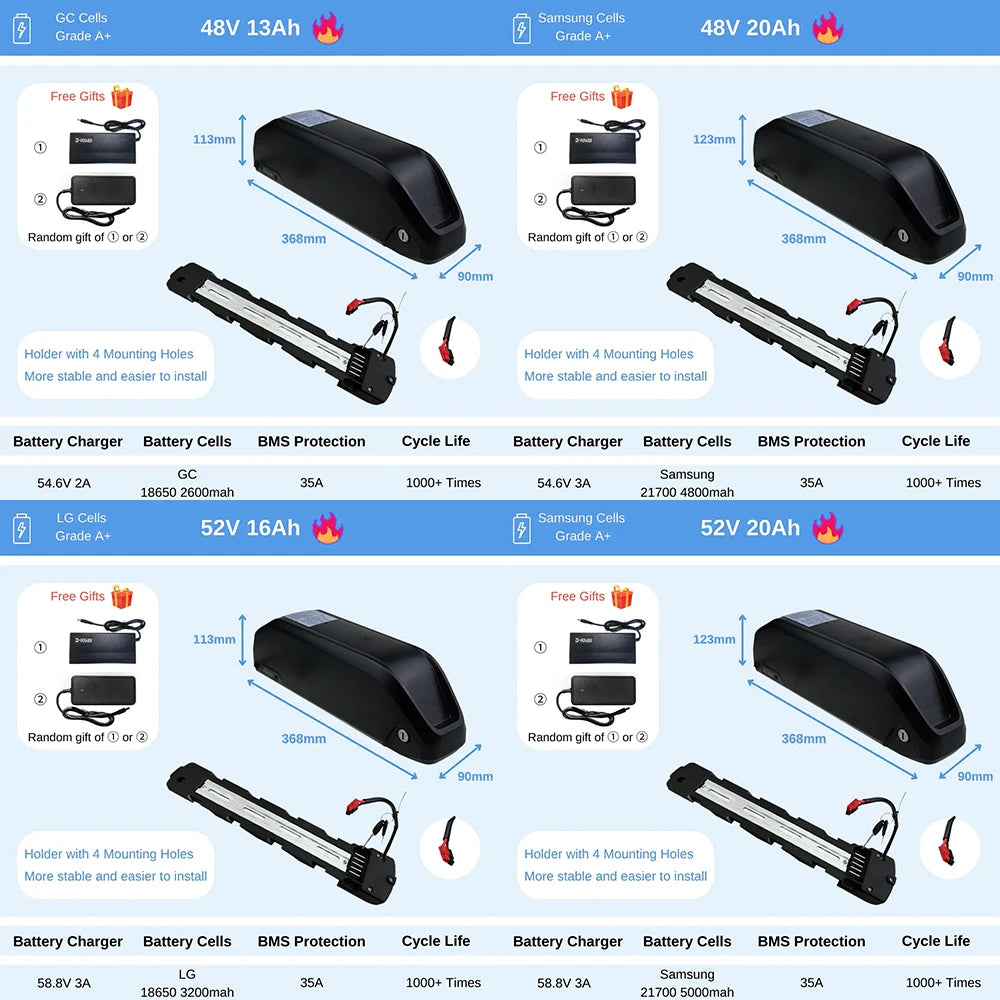

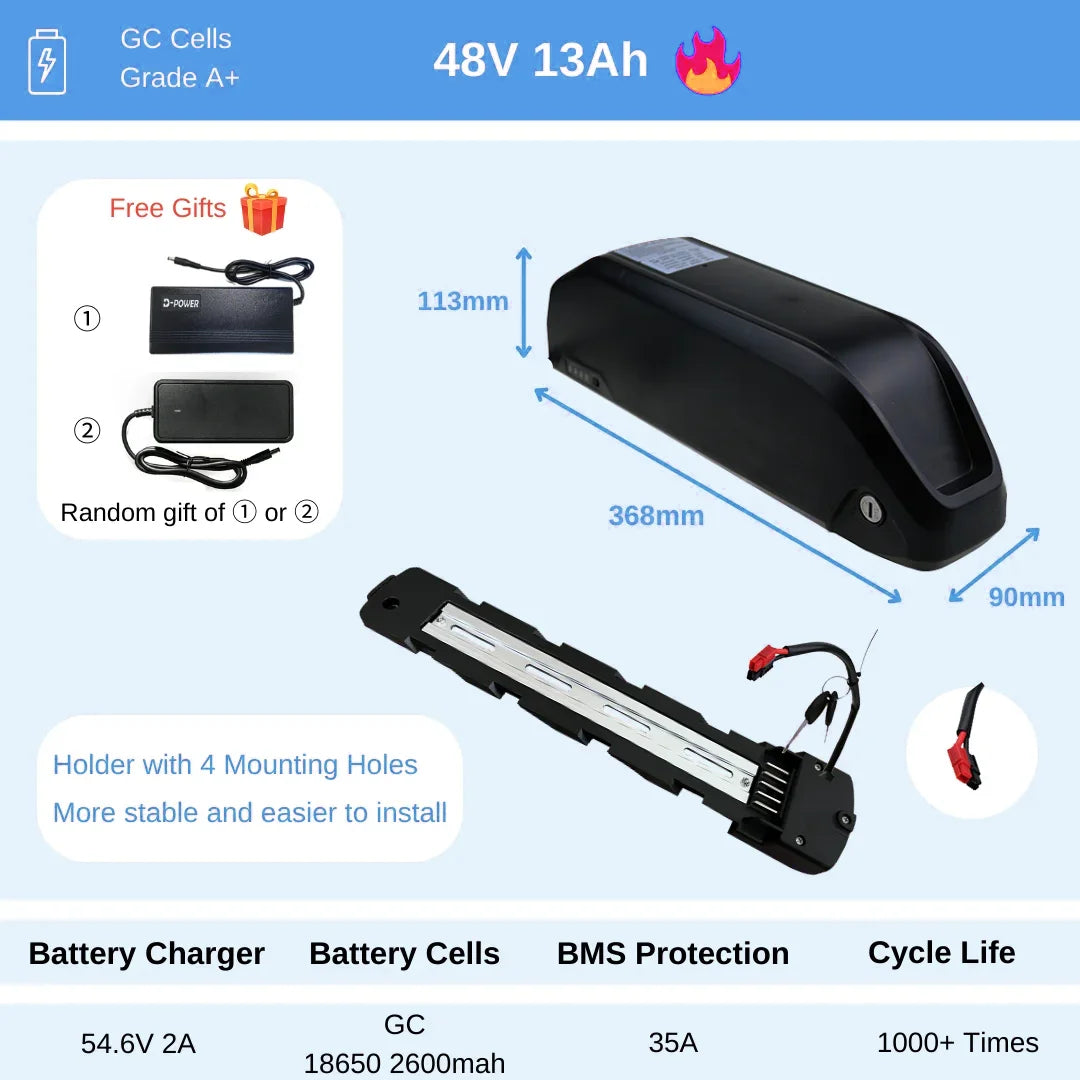

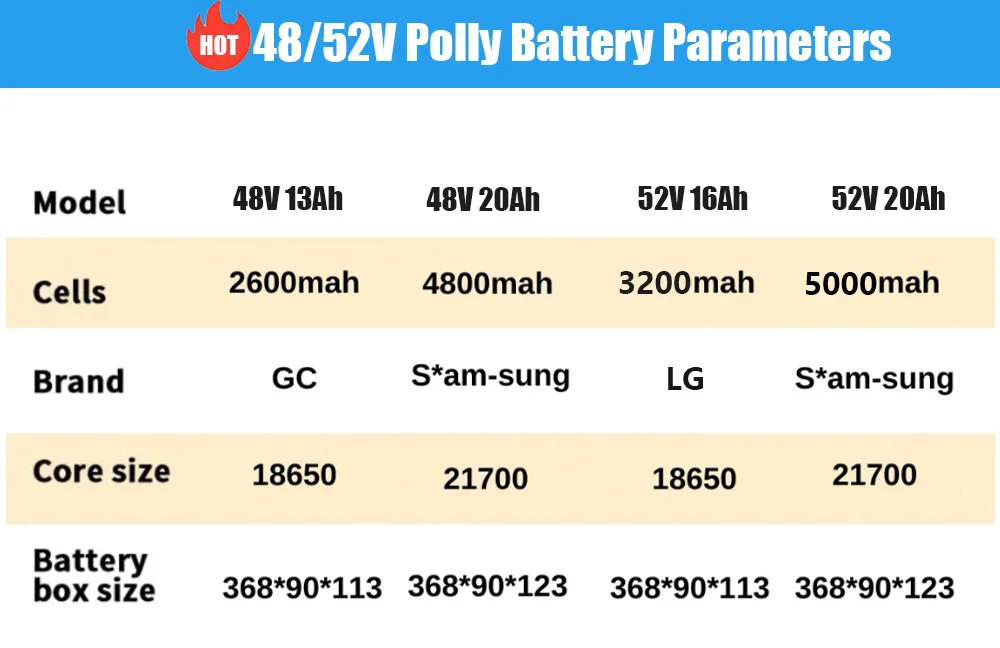

-Battery Specification-
*Nomal Volt: 48V/52V
*Battery Cells: Imported cells & Chinese 3C cells
*Battery Weight: 2.8-5.5KG（Include Charger）
*Max Constant Discharge Current:30A
*Peak Current: 85A
*48V Battery Charge Voltage:54.6V
*52V Battery Charge Voltage:58.8V
*48V Battery Discharge Cut Off Voltage:36.4V
*52V Battery Discharge Cut Off Voltage:39V
*Cycle Life: 800 times
*Way of Charge: CC/CV
*Charge Temperature: 0-45℃
*Discharge Temperature: -20-65℃
*Protection Function: Over charge, Over discharge,Over current, Short circuit, Balance
Note:
1.During the installation process, please note that the installation distance of the speed sensor is less than 4 mm, so that the speed sensor will accurately convey your speed for you in real time.
2.Before installing the motor, please follow the steps in the manual to connect the motor to see if the motor can work normally. Please DO NOT remove any connection with the power supply is on.2. If you have any questions about our products or services , feel free to contact us first, please. We will reply you within 24 Hours (Business Day) and provide you with solutions.

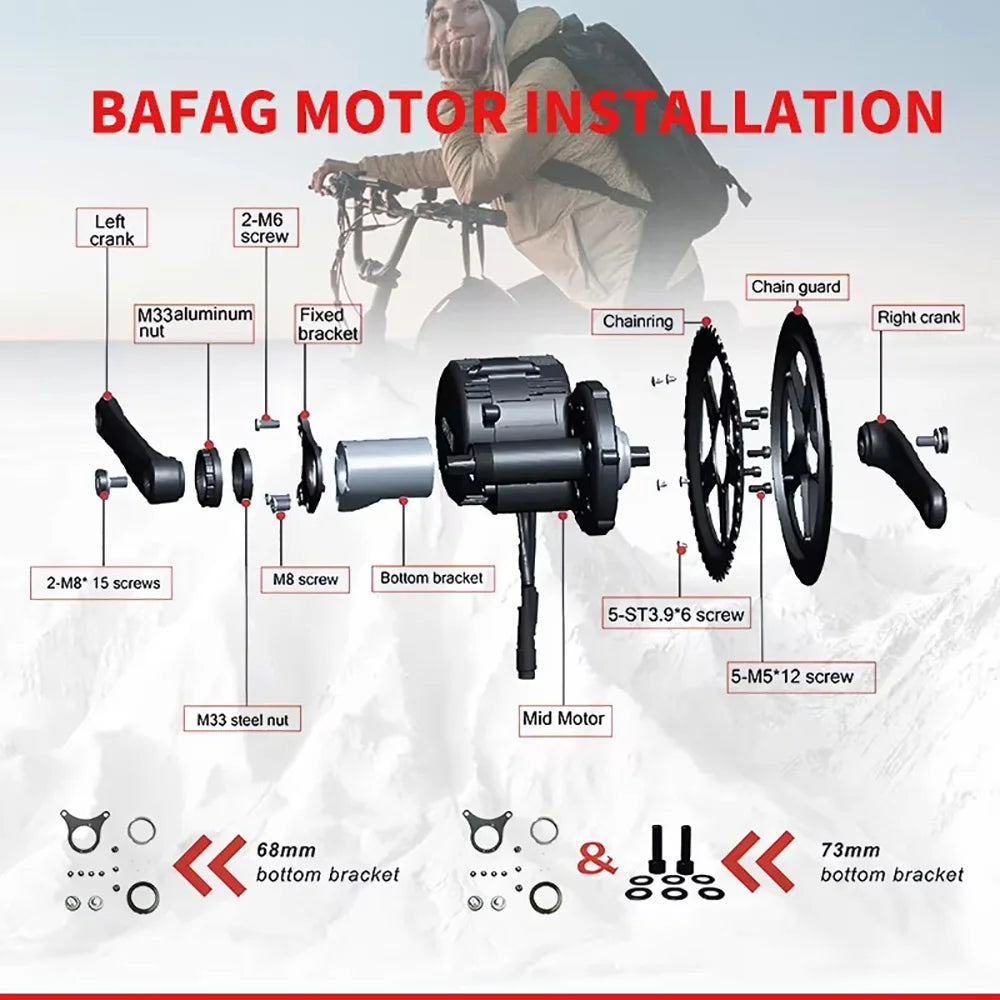

3.Installation method:If you will not install the kit after purchasing, we can provide you with an installation tutorial video, which will take about 1-2 hours to install.
FAQ:

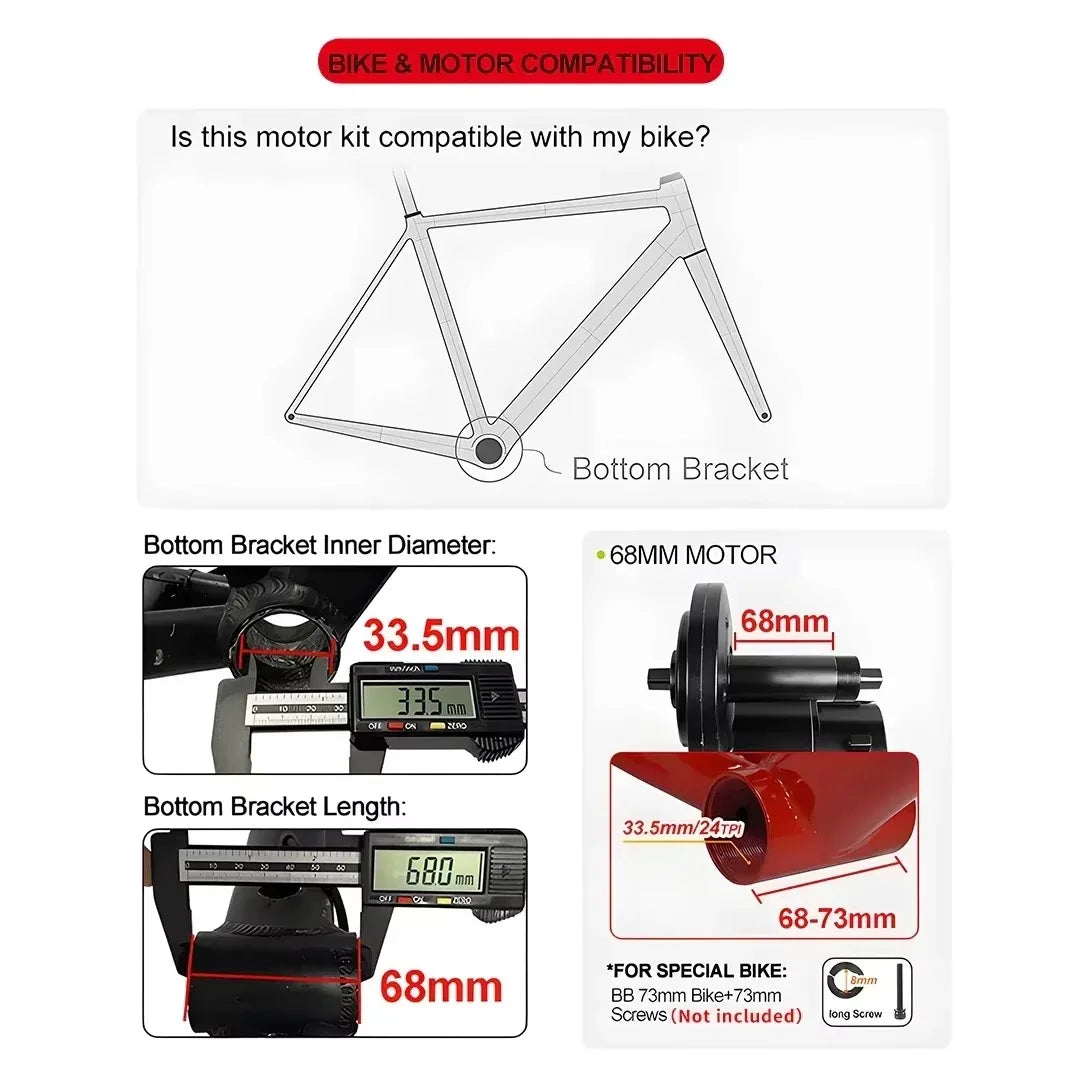

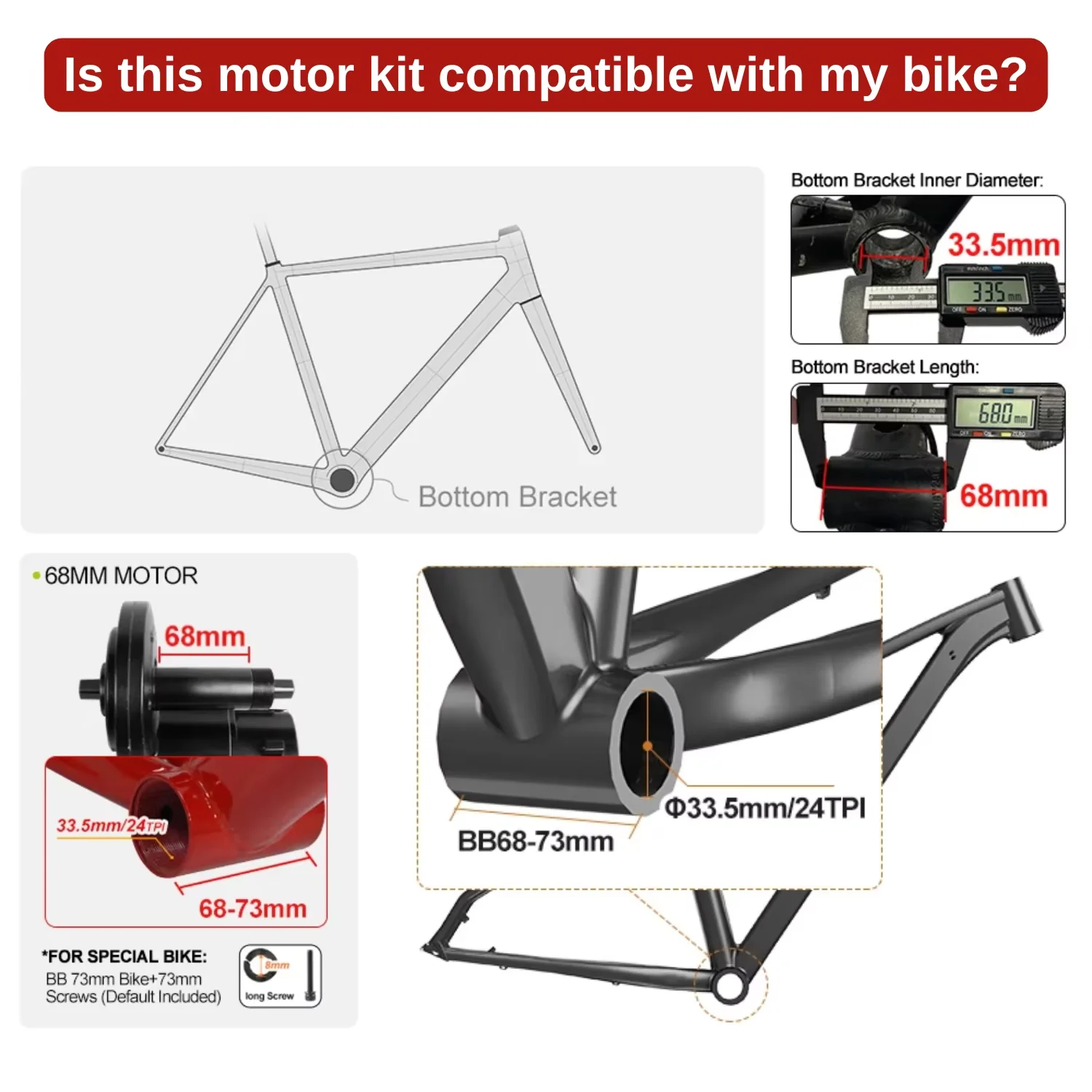

Q: How do I know if this mid drive motor fits for my bike?A: This 68mm mid drive motor fits for the bike with 68mm (2.68inch) - 73mm (2.87inch) wide bottom bracket, we'll send extra install accessoreis for 73mm bottom bracket. The inner diamater of the bracket should be not less than 33.5mm.Q: How do I confirm whether I need the brake levers or the brake sensors?

A: If your brakes are hydraulic or you want to use your own brake sensors, you can choose brake sensors. They can connect with your brakes to work directly.
Q:Do I need a battery for the ebike kit?
A:Yes, but there is no battery included in the option of this listing. If you need it, We advice that you could order it extra in our store so that we could ship you together .
