SPECIFICATIONS



Application: Electric Bicycle,E-scooter,Trolling Motor



Brand Name: Aleaivy

Certification: CE,UL

Connection: Others

High-concerned chemical: None

Model Number: hailong 48v battery

Nominal Capacity: 10/15/20ah

Rated Voltage: 110v

Size: 18650 / 21700

Type: Li-Ion

Voltage: 48v

Weight: --



Specification：

* Brand：Aleaivy

* Battery Cell Composition: Lithium Ion A+++++ cell

* Voltage: 48 Volt

* Capacity (amp hours) : 10Ah / 15Ah / 20Ah

* Power:0W-2000W

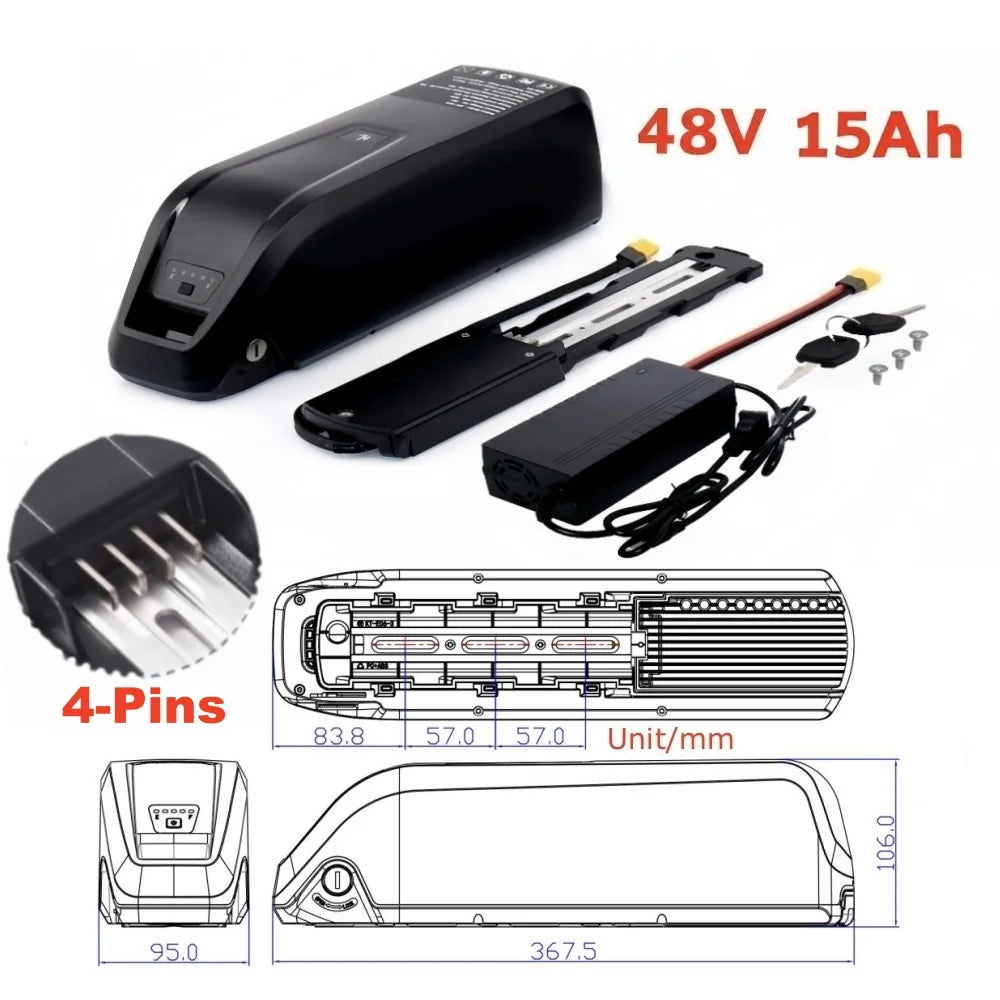

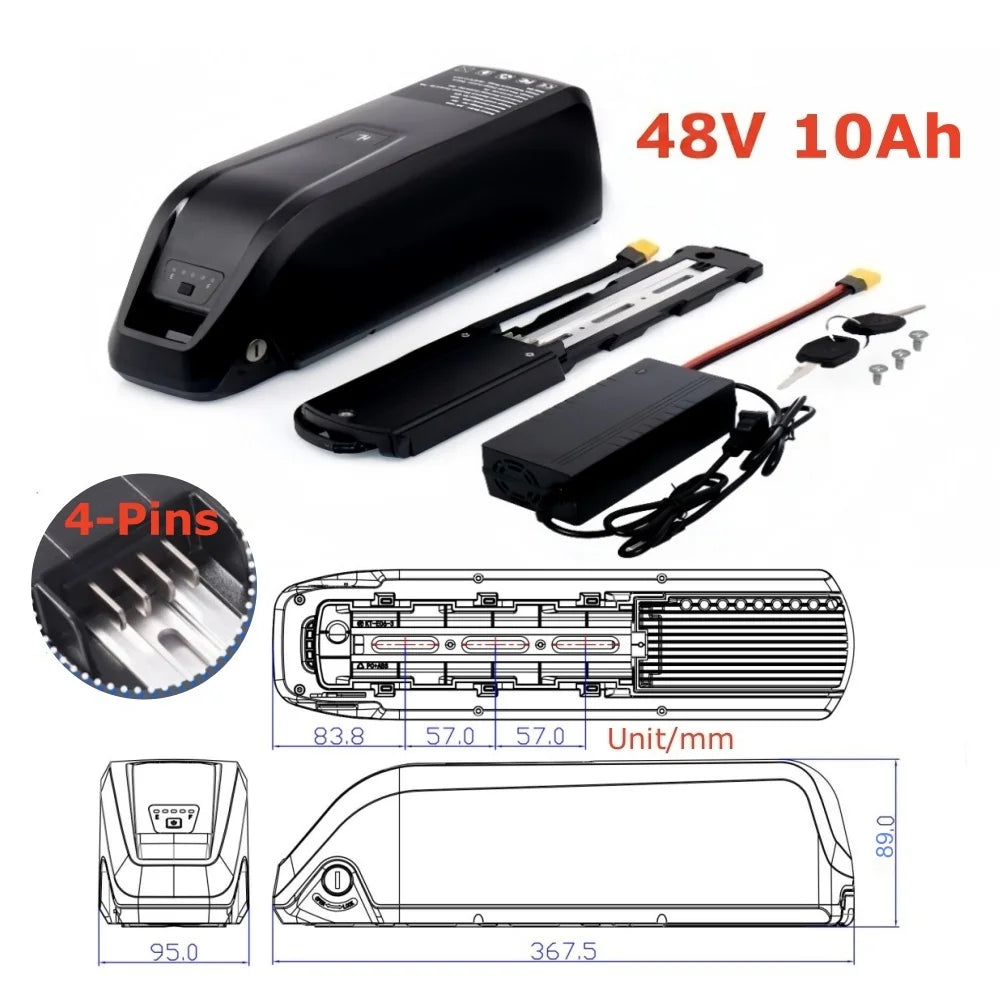

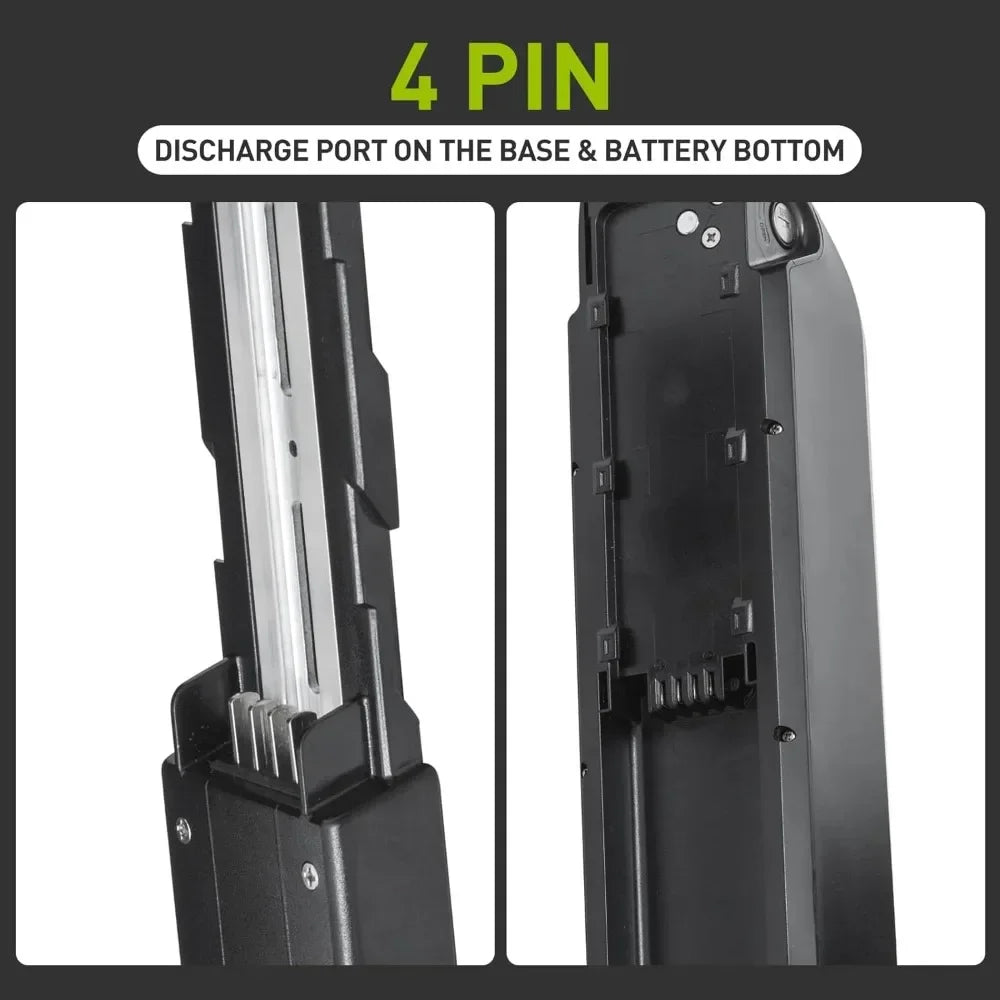

* OUR HOLDER Plug:4-PIN

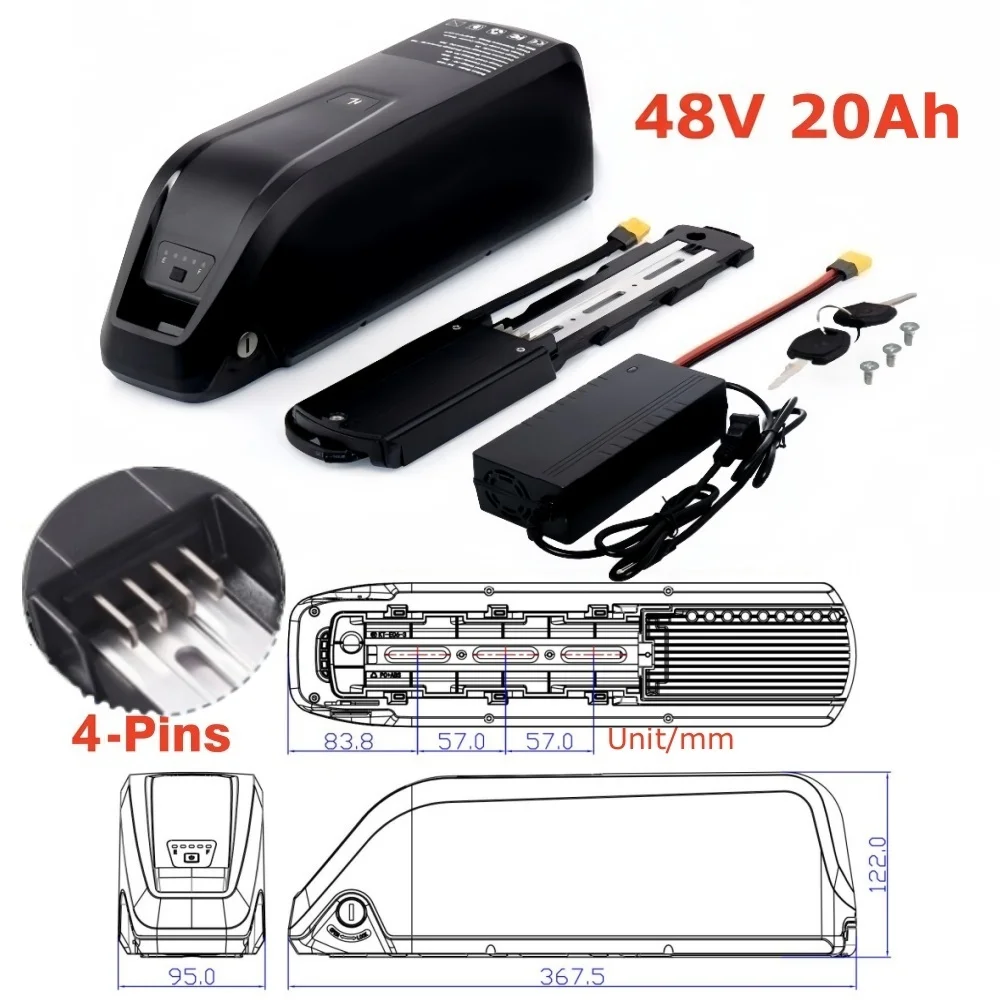

* Energy:960Wh(48V 20AH)

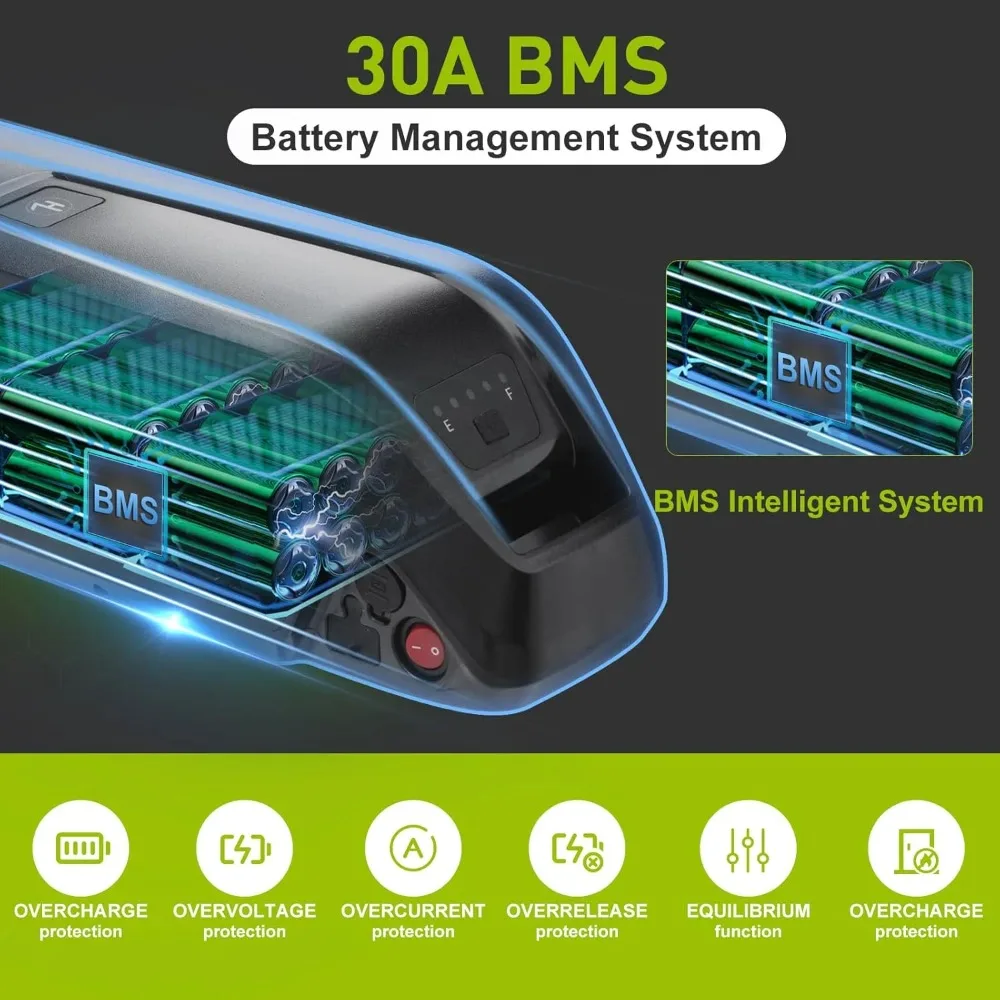

* BMS: 30A

* Charge Temperature Range: -20°C-55°C/-4~131 ℉

* Chemical Composition: Lithium Iron Phosphate (Li-ion)

* Discharge Temperature: -20~ 65°C/-4~149 ℉

* Maximum continuous discharge: 30A(48V 10Ah15Ah 20Ah Battery)

* Type: Lithium Battery

* Peak Discharge Current :75A(30A BMS) 120A(40A BMS)

* Continuous Discharge Current : 30A(48V 10Ah15Ah 20Ah Battery)

* Fit ebike: For 36V/48V 200W-2000W ebike Electric Bike

* Long life 1500+ deeply cycles,Quality Grade A+++++ cell, Riding time   longer than ordinary batteries.

* Built in BMS with short circuit , over-current , over-heat , over-charge , over-discharge protection.

About the Battery Lights

Press the“" button the lights will turn on.

Lights-1 Red 3 Green---100%

Lights-1 Red 2 Green---75%

Lights-1 Red 1 Green---50%

Lights-1 Red 0 Green---25%(you need to charge the battery at this time)
